MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp
Produktbeschreibung
5MP + 2MP binokulare Full-HD-Kameramodule:
This 5MP + 2MP binocular camera module provides clear images and clear videos, make you enjoy clear HD effects, high resolution and true color images in any environment. Two cameras can simultaneously obtain image information of the scene from different angles, providing a more comprehensive, multi-angle observation. Binocular cameras can capture more details and features, and are more advantageous in identifying and understanding complex objects. Binocular cameras can more accurately locate the key feature points of a person's face, improve recognition accuracy and security, and effectively resist photo, video and other attacks and fraud.
Plug and Play directly, no need software, easy to install. Compatible with Windows XP/7/8/10 and above, linux operating system, standard UVC protocol.
Grundlegende Spezifikationen der Kamera
|
Items |
Parameters |
|||
|
Name |
USB VR Camera |
USB IR Camera |
||
|
Camera VID/PID |
VID:0C45 PID:6390 |
VID:0C45 PID:6391 |
||
|
SENSOR |
CMOS |
CMOS |
||
|
Lens Size |
1/2.5" |
1/2.9" |
||
|
Most effective pixels |
2592*1944 |
1920*1080 |
||
|
dynamic range |
85dB |
81dB |
||
|
Lens |
Diagonal field of view (D) ：102±3° |
Diagonal field of view (D) ：89±3° |
||
|
Horizontal field of view FOV (H) ：87±3° |
Horizontal field of view FOV (H)：80±3° |
|||
|
Vertical field of view (V) ：69±3° |
Vertical field of view (V) ：55±3° |
|||
|
focusing |
Fixed focus |
Fixed focus |
||
|
Data Format |
MJPG |
YUV |
MJPG |
YUV |
|
Common resolution @ frame rate |
2892*1944@30fps |
2892*1944@3fps |
1920*1080@30fps |
1920*1080@5fps |
|
1920*1080@30fps |
1920*1080@5fps |
1280*720@30fps |
1280*720@5fps |
|
|
1280*720@30fps |
1280*720@25fps |
800*600@30fps |
800*600@30fps |
|
|
800*600@30fps |
800*600@30fps |
640*480@30fps |
640*480@30fps |
|
|
640*480@30fps |
640*480@30fps |
|
|
|
|
auto control |
(Saturation)， (White balance)，（exposure）。 |
|||
|
audio |
/ |
|||
|
Voltage |
USB 5V |
|||
|
working current |
MAX 300mA |
|||
|
USB Connector |
Type-A -USB2.0 |
|||
|
Temperature |
-20℃ to +70℃ |
|||
|
working Temperature |
0℃ to +50℃ |
|||
|
system compatibility |
1、Windows XP（SP2,SP3）、Vista 、7、8、10、11 |
|||
|
2、Mac OS with UVC driver |
||||
|
3、Linux or OS with UVC driver |
||||
Spezifikation der Hauptkomponenten
|
Item |
Key parameter |
Specification |
|
|
Sensor |
Type |
CMOS |
CMOS |
|
Optical size |
1/2.5 inch |
1/2.9 inch |
|
|
Active Array Size |
2592(H) x1944(V) |
1920(H) x1080(V) |
|
|
Pixel Size |
2.2μm x 2.2μm |
2.8μm x 2.8μm |
|
|
MAX Frame Rate |
30fps@Full size |
30fps@Full size |
|
|
Shutter Type |
Electronic Rolling shutter |
Electronic Rolling shutter |
|
|
CRA |
TBD |
12°（linear） |
|
|
Operation temperature range |
-20℃～70℃ |
-20℃～70℃ |
|
|
Lens |
Type |
MY-7048 |
MY-7049 |
|
F/NO |
2.5±5% |
2.5±5% |
|
|
FOV(Field of View) |
102°(OPT) |
89°(OPT) |
|
|
Construction |
1G4P+IR |
1G4P+IR |
|
|
TV-Distortion |
<-0.9% |
<-0.9% |
|
|
IR Filter |
650nm |
850nm |
|
|
EFL |
2.95mm |
2.95mm |
|
|
TTL |
15.65±0.2mm |
15.65±0.2mm |
|
|
Barrel Thread |
M12*P0.5mm |
M12*P0.5mm |
|

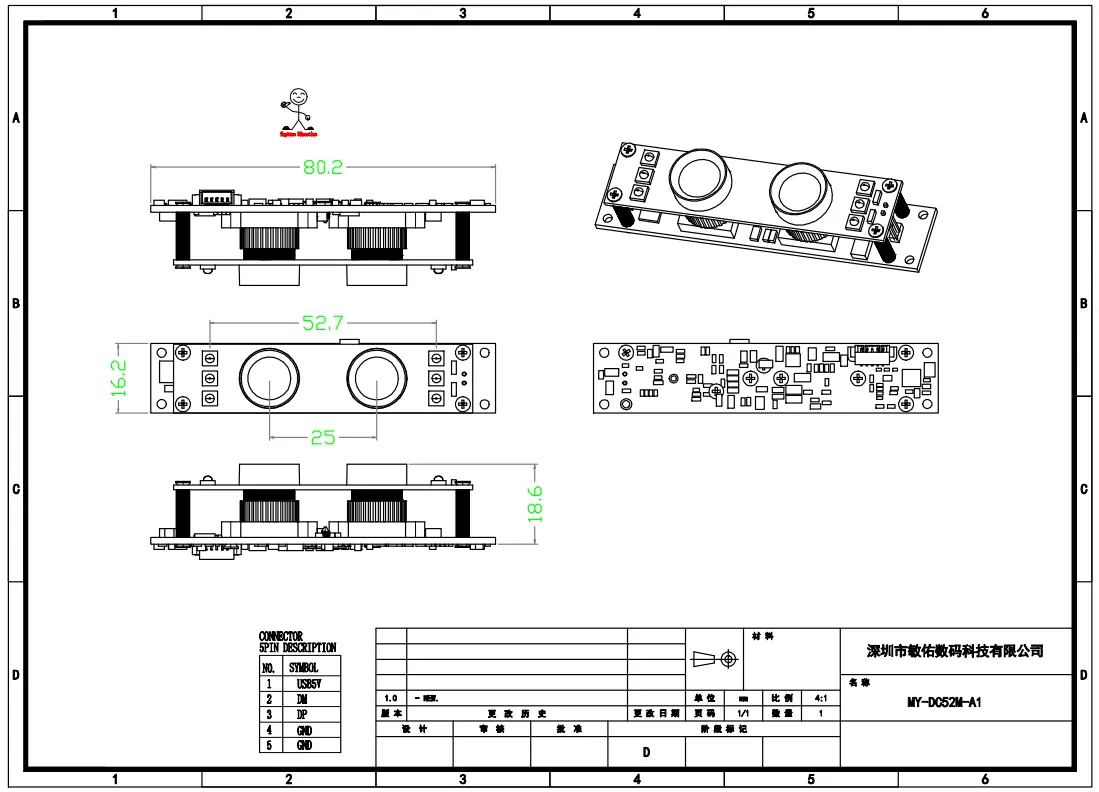

Produktstrukturdiagramm
Pin Description
|
NO |
Name |
I/O |
Description |
|
1 |
VCC-5V |
Power |
USB power 5V |
|
2 |
DM |
I/O |
Data- |
|
3
|
DP |
I/O |
Data+ |
|
4
|
GND |
Power |
Power Ground |
