MY-USB1M818A Global Exposure Usb Camera Module With 1mp Hd Video
Ürün Açıklaması
1MP Full HD Web Kamerası：
This 1MP webcam module provides clear images and clear videos, make you enjoy clear HD effects, high resolution and true color images in any environment. It is suitable for shooting high-speed movement or instantly changing scenes, such as fast-moving objects (such as speeding cars, flying birds, etc.), sports, explosions, etc., and can capture clear, non-distorted images.
Plug and Play directly, no need software, easy to install. Compatible with Windows XP/7/8/10 and above, linux operating system, standard UVC protocol.
Kamera Temel Özellikleri
|
Items |
Parameters |
|||
|
Name |
USB Kamera |
|||
|
Camera VID/PID |
VID:0A46 PID:6360 |
|||
|
SENSOR |
CMOS |
|||
|
Lens Size |
1/4" |
|||
|
Most effective pixels |
1280*800 |
|||
|
dynamic range |
68dB |
|||
|
Lens |
Diagonal perspectiveFOV（D） ：90±3° |
|||
|
Horizontal view angleFOV（H） ：68±3° |
||||
|
Vertical viewing angleFOV（V） ：40±3° |
||||
|
focusing |
Fixed focal length (Fixed focus) |
|||
|
Data Format |
MJPG |
YUV |
||
|
Common resolution @ frame rate |
1280*800@120fps |
1820*720@120fps |
1280*800@10fps |
1820*720@10fps |
|
800*600@120fps |
640*480@120fps |
800*600@30fps |
640*480@120fps |
|
|
320*240@120fps |
|
320*240@30fps |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
auto control |
White balance，exposure。 |
|||
|
audio |
/ |
|||
|
Voltage |
USB 5V |
|||
|
working current |
MAX 150mA |
|||
|
USB Connector |
USB2.0 5PIN-1.25 |
|||
|
Storage Temperature |
-20℃ to +70℃ |
|||
|
working Temperature |
0℃ to +50℃ |
|||
|
system compatibility |
1、Windows XP（SP2,SP3）、Vista 、7、8、10、11 |
|||
|
2、Mac OS with UVC driver |
||||
|
3、Linux or OS with UVC driver |
||||
Ana Bileşen Spesifikasyonu
|
Item |
Key parameter |
Specification |
|
Sensor |
Type |
CMOS |
|
Optical size |
1/4 inch |
|
|
Active Array Size |
1296(H) x816(V) |
|
|
Pixel Size |
3.0μm x 3.0μm |
|
|
MAX Frame Rate |
30fps@Full size |
|
|
Shutter Type |
Global shutter |
|
|
CRA |
TBD |
|
|
Operation temperature range |
-20℃～70℃ |
|
|
Lens |
Type |
MY-7048 |
|
F/NO |
2.5±5% |
|
|
FOV(Field of View |
102°(OPT) |
|
|
Construction |
1G4P+IR |
|
|
TV-Distortion |
<-0.9% |
|
|
IR Filter |
650nm |
|
|
EFL |
2.95mm |
|
|
TTL |
15.65±0.2mm |
|
|
Barrel Thread |
M12*P0.5mm |

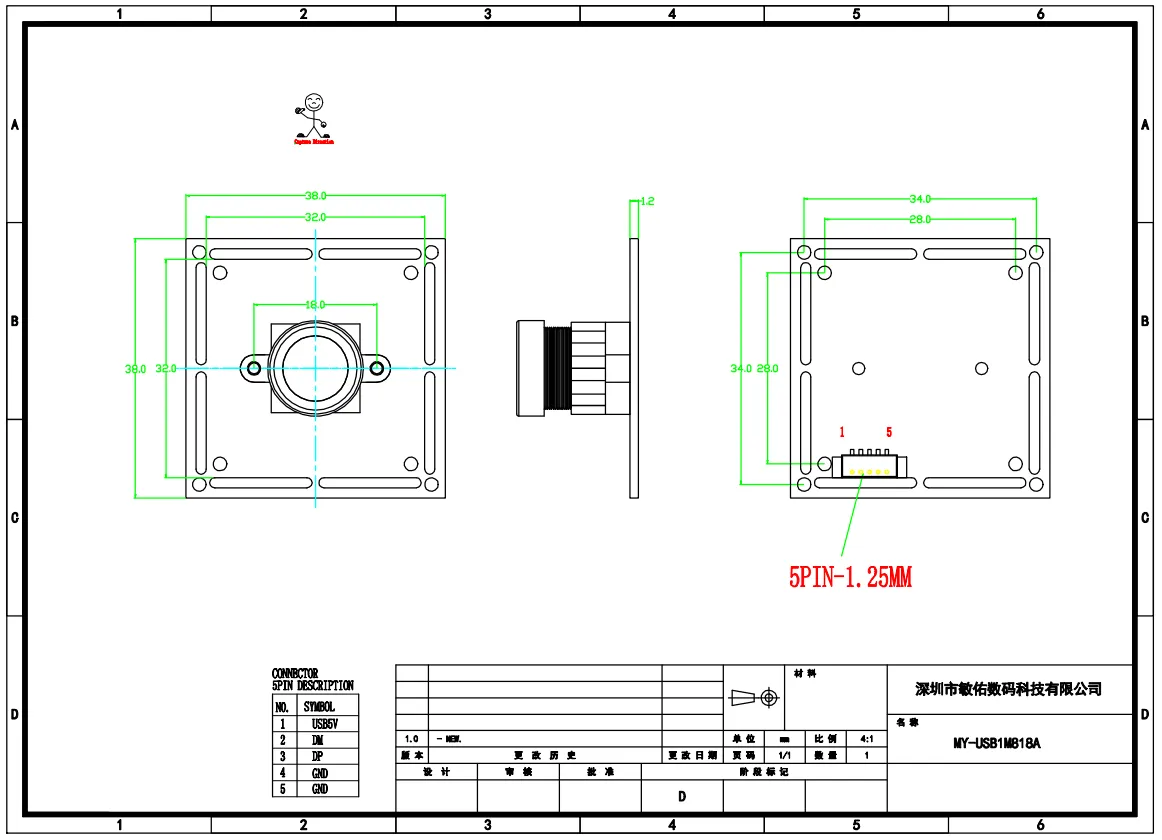

Ürün Yapı Şeması
Pin Description
|
NO |
Name |
I/O |
Description |
|
1 |
VCC-5V |
Power |
USB power 5V |
|
2 |
DM |
I/O |
Data- |
|
3
|
DP |
I/O |
Data+ |
|
4
|
GND |
Power |
Power Ground |
|
5 |
GND |
Power |
Power Ground |
