MY-USB5M208B Usb3.0 Camera Module 5mp Hd Video
Ürün Açıklaması
5MP Full HD Webcam:
This 5MP webcam provides clear images and clear videos, make you enjoy clear HD effects, high resolution and true color images in any environment. The fixed-focus webcam allows you to find the right angle in live broadcasts or video conferences. Make sure you stay in the best condition during video calls and live broadcasts.
Plug and Play directly, no need software, easy to install. Compatible with Windows XP/7/8/10 and above, linux operating system, standard UVC protocol. It supports OBS, XBox one, Youtube, Facebook, Skype, Xsplit, Mixer. can be used on all desktops, laptops, etc.
Kamera Temel Özellikleri
|
Items |
Parameters |
|||
|
Name |
USB Kamera |
|||
|
Camera VID/PID |
VID:0A46 PID:6360 |
|||
|
SENSOR |
CMOS |
|||
|
Lens Size |
1/2.5" |
|||
|
Most effective pixels |
2592*1944 |
|||
|
dynamic range |
85dB |
|||
|
Lens |
Diagonal perspectiveFOV（D） ：102±3° |
|||
|
Horizontal view angleFOV（H） ：87±3° |
||||
|
Vertical viewing angleFOV（V） ：69±3° |
||||
|
focusing |
Fixed focus |
|||
|
Data Format |
MJPG |
YUV |
||
|
Common resolution @ frame rate |
2592*1944@30fps |
2592*1520@30fps |
2592*1944@30fps |
1920*1080@60fps |
|
2048*1536@30fps |
1920*1080@60fps |
1600*1200@60fps |
1280*720@120fps |
|
|
1600*1200@60fps |
1280*720@120fps |
800*600@120fps |
640*480@120fps |
|
|
800*600@120fps |
640*480@120fps |
|
|
|
|
320*240@120fps |
|
|
|
|
|
auto control |
Saturation，White balance，exposure. |
|||
|
audio |
/ |
|||
|
Voltage |
USB 5V |
|||
|
working current |
MAX 200mA |
|||
|
USB Connector |
USB3.0--Type-C |
|||
|
Storage Temperature |
-20℃ to +70℃ |
|||
|
working Temperature |
0℃ to +50℃ |
|||
|
system compatibility |
1、Windows XP（SP2,SP3）、Vista 、7、8、10、11 |
|||
|
2、Mac OS with UVC driver |
||||
|
3、Linux or OS with UVC driver |
||||
Ana Bileşen Spesifikasyonu
|
Item |
Key parameter |
Specification |
|
Sensor |
Type |
CMOS |
|
Optical size |
1/2.5 inch |
|
|
Active Array Size |
2592(H) x1944(V) |
|
|
Pixel Size |
2.20μm x 2.20μm |
|
|
MAX Frame Rate |
30fps@Full size |
|
|
Shutter Type |
Electronic Rolling shutter |
|
|
CRA |
TBD |
|
|
Operation temperature range |
-20℃～70℃ |
|
|
Lens |
Type |
MY-7048 |
|
Aperture F/NO |
2.5±5% |
|
|
viewing angle FOV(Field of View) |
102°(OPT) |
|
|
Construction |
1G4P+IR |
|
|
TV-Distortion |
<-0.9% |
|
|
IR Filter |
650nm |
|
|
EFL |
2.95mm |
|
|
TTL |
15.65±0.2mm |
|
|
Barrel Thread |
M12*P0.5mm |

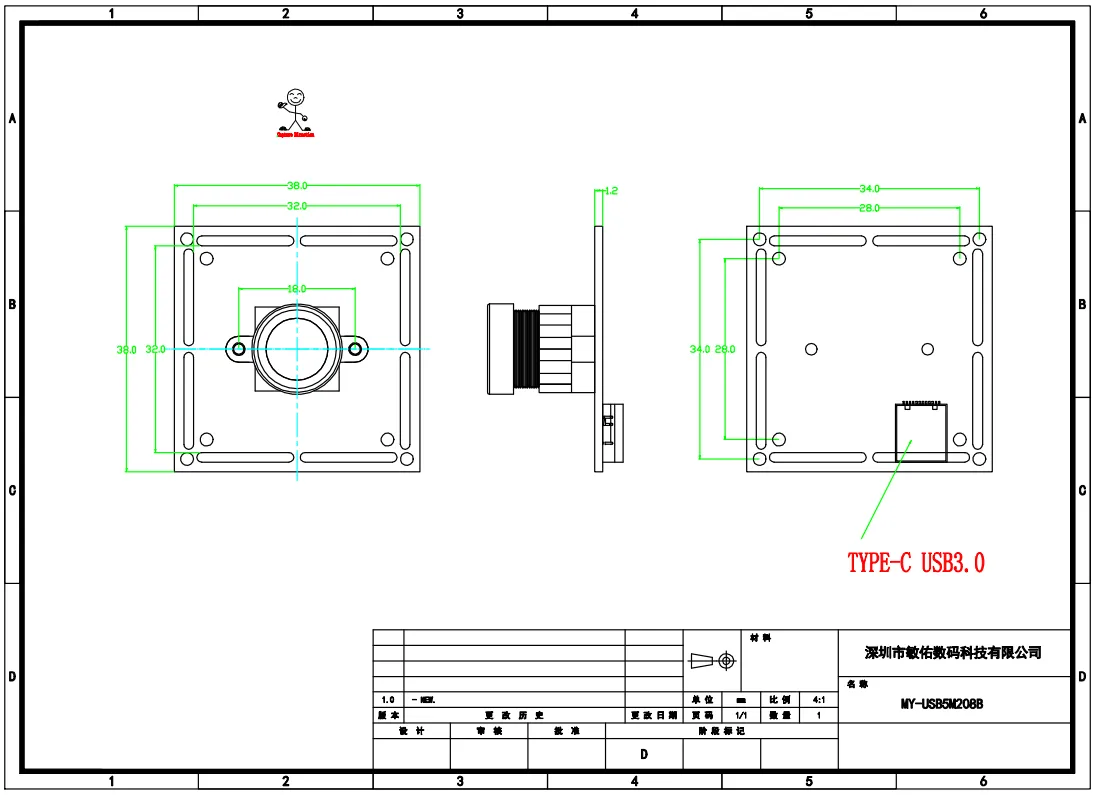

Ürün Yapı Şeması
