MY-DC52M-A1 Dual Lens WDR USB2.0 Camera Module - 5MP+2MP HD Video

Industrial Imaging: Bridging Vision Gaps with Advanced Camera Modules

The demand for sophisticated imaging solutions in industrial and commercial applications is escalating, driven by advancements in automation, artificial intelligence, and real-time data processing. Industries from manufacturing and logistics to medical diagnostics and security require camera modules that can perform reliably under challenging conditions, delivering high-quality images with exceptional clarity and dynamic range. This need is particularly pronounced in environments where lighting is inconsistent or extreme, making Wide Dynamic Range (WDR) a critical feature. Modern camera modules are not just about pixel count; they encompass an intricate blend of sensor technology, image signal processing (ISP), and robust mechanical design to meet stringent performance benchmarks.

In this rapidly evolving landscape, specialized components such as the MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp are pivotal. This module represents a leap forward in compact, high-performance imaging, integrating dual lenses for multi-perspective capture and leveraging WDR technology to overcome common visual obstacles. Its design caters specifically to B2B clients seeking reliable, high-definition video and still image capture for complex industrial applications, ensuring data integrity and operational efficiency.

Product Overview & Technical Specifications

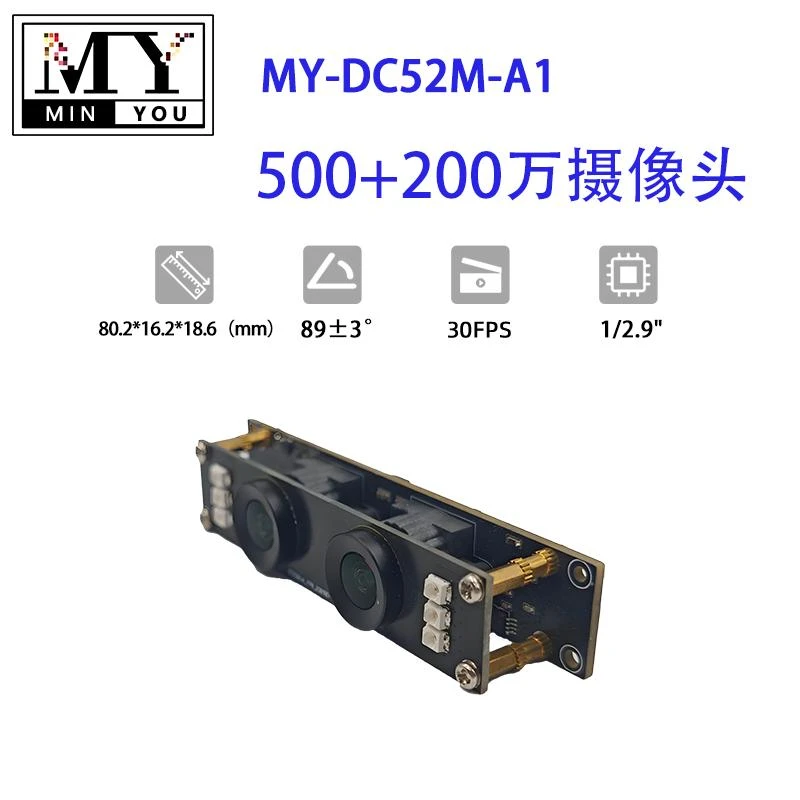

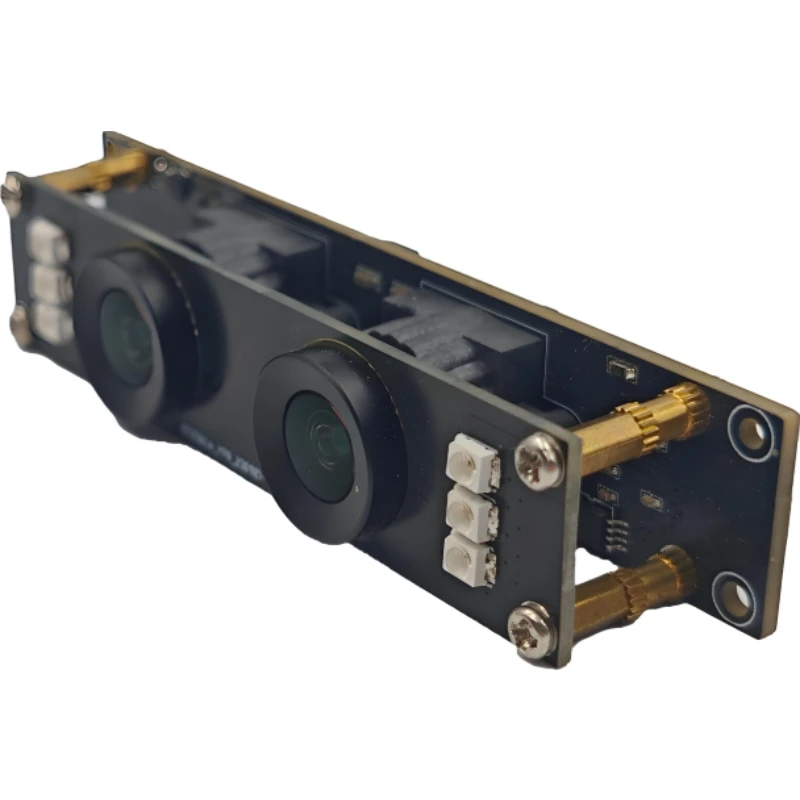

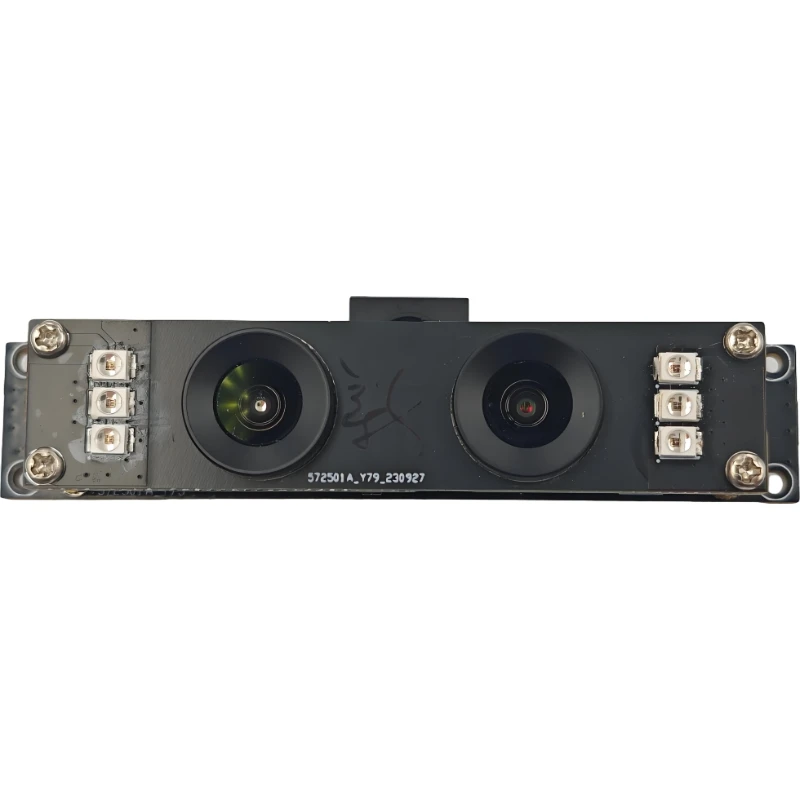

The MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp is engineered for precision and reliability in demanding industrial environments. It combines a 5-megapixel primary lens with a 2-megapixel secondary lens, enabling versatile imaging capabilities from high-resolution detail capture to simultaneous wide-angle monitoring or depth perception. The integration of Wide Dynamic Range (WDR) technology ensures optimal image exposure even in scenes with extreme variations in illumination, such as brightly lit areas adjacent to deep shadows.

The USB 2.0 interface provides broad compatibility and ease of integration into existing systems, simplifying deployment across various platforms. This module is a prime example of expert engineering, balancing high-performance imaging with practical, robust design.

Detailed Product Specifications

Key Technical Advantages

• Dual-Lens Versatility: The combination of 5MP and 2MP sensors offers unparalleled flexibility. The 5MP sensor can be utilized for detailed object recognition or quality inspection, while the 2MP sensor provides a broader contextual view or can be configured for specialized tasks such as depth sensing (stereo vision with appropriate calibration) or secondary monitoring, enhancing overall situational awareness.
• Exceptional Wide Dynamic Range (WDR): This is paramount for industrial applications operating in environments with challenging lighting conditions. WDR capabilities, typically achieved through multi-exposure fusion or advanced sensor design, ensure that both very bright and very dark areas within a single frame are clearly visible, preventing saturation or underexposure. This is crucial for tasks like reading labels on products moving from brightly lit to shadowed conveyors or for outdoor surveillance.
• High Definition Video Output: With full HD (1080p) video from the 2MP lens and even higher resolution from the 5MP lens, the module delivers crisp, clear video streams essential for real-time monitoring, machine vision algorithms, and post-analysis. High frame rates ensure smooth motion capture, reducing blur and improving accuracy for dynamic applications.
• Robust USB 2.0 Connectivity: While USB 3.0 offers higher bandwidth, USB 2.0 remains a highly prevalent and stable interface in industrial settings. Its plug-and-play nature, combined with robust drivers and broad operating system support, simplifies integration and reduces development time. The MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp leverages this reliability for consistent data transfer.
• Compact and Customizable Form Factor: Designed as a module, it offers flexibility for integration into various host systems, from embedded devices to custom enclosures. The small footprint and customizable lens options (e.g., different focal lengths, distortion correction) allow for tailored solutions to specific application requirements.
• Low Latency Performance: Critical for real-time control and feedback systems, the module is optimized for low latency image capture and processing, ensuring that visual data is available almost instantaneously for decision-making or robotic actuation.

Application Scenarios

The robust design and advanced features of the MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp make it suitable for a diverse range of B2B applications across multiple industries:

• Industrial Automation & Robotics: Enabling precise object recognition for pick-and-place robots, quality control inspection of manufactured goods, and real-time monitoring of assembly lines. The dual lenses can assist in 3D reconstruction for robotic guidance or simultaneous inspection from multiple angles.
• Security and Surveillance: High-definition video and WDR are critical for security cameras, especially in outdoor or challenging indoor environments (e.g., parking garages, building entrances) where strong backlighting or deep shadows can obscure details. The dual-lens setup can provide wide-angle overview and detailed zoom simultaneously.
• Medical Imaging & Diagnostics: Integration into medical devices for microscopy, patient monitoring, or diagnostic equipment where clear, detailed images under various lighting conditions are paramount for accurate analysis.
• Kiosks and Access Control Systems: For facial recognition, identity verification, or interactive displays in varied lighting. The WDR capability ensures reliable performance regardless of ambient light.
• Automotive & Transportation: Used in advanced driver-assistance systems (ADAS) for interior monitoring, occupant sensing, or blind-spot detection where light changes rapidly. Its WDR functionality is vital for seeing clearly through windshield glare or into shadowy cabin areas.
• Logistics and Inventory Management: For barcode scanning, package inspection, and automated inventory tracking in warehouses, often with mixed lighting from skylights and artificial sources.

Manufacturing Process Flow

The production of the MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp follows a rigorous, multi-stage manufacturing process designed to ensure precision, reliability, and compliance with international quality standards like ISO 9001. Each step is meticulously controlled, from material sourcing to final packaging, to guarantee optimal performance and a long service life of typically 5-7 years or more under recommended operating conditions.

1. Component Sourcing & Incoming Quality Control (IQC):

   High-grade optical glass for lenses, industrial-grade CMOS image sensors, robust PCB substrates, and certified electronic components are sourced from trusted suppliers. All incoming materials undergo stringent IQC inspections for adherence to material specifications, dimensional accuracy, and electrical performance before entering production.

2. PCB Assembly (SMT - Surface Mount Technology):

   Automated SMT lines precisely place microscopic electronic components onto the Printed Circuit Boards. This process utilizes advanced pick-and-place machines and reflow ovens, ensuring secure and reliable solder joints. This includes the Image Signal Processor (ISP) and USB controller, crucial for the module's functionality.

3. Sensor and Lens Integration:

   The CMOS image sensors are carefully mounted onto the assembled PCBs. Subsequently, the dual lenses are integrated and precisely aligned using specialized optical alignment equipment. This step is critical for achieving optimal focal length, eliminating aberrations, and ensuring consistent image quality across both sensors. Precision optical adhesives are often used for secure mounting.

4. Initial Electrical & Optical Testing:

   Each module undergoes initial functional tests to verify electrical connectivity, basic image capture capabilities, and the functionality of the USB interface. Optical performance is assessed for defects like dead pixels, hot spots, and uniformity.

5. Image Quality Calibration & WDR Optimization:

   Modules are calibrated in controlled lighting environments. This involves fine-tuning ISP parameters (e.g., white balance, color correction, gamma, noise reduction) and specifically optimizing the WDR algorithm to ensure maximum dynamic range and accurate color reproduction under varied lighting. ANSI standards for image quality are referenced during this stage.

6. Environmental and Reliability Testing:

   A subset of modules undergoes accelerated life testing (ALT) in environmental chambers. This includes thermal cycling, humidity exposure, and vibration testing to simulate harsh operating conditions and ensure long-term durability, crucial for target industries like industrial automation, petrochemical, and metallurgy where robustness is key to preventing system failures and reducing energy consumption by minimizing downtime.

7. Final Functional & Performance Testing (FPT):

   Every module undergoes a comprehensive FPT. This includes testing at maximum resolution and frame rates, verifying WDR performance across various light levels, assessing data integrity over the USB interface, and confirming all advertised specifications. Data logging from these tests serves as critical quality assurance.

8. Packaging:

   Modules are packaged in anti-static, protective materials to prevent damage during transit, ensuring they arrive in pristine condition, ready for integration into customer systems for applications in diverse fields such as water supply & drainage monitoring where corrosion resistance of external enclosures is paramount.

Vendor Comparison & Competitive Edge

In a competitive market for industrial camera modules, the differentiation comes from a combination of technical specifications, reliability, support, and customization capabilities. Many vendors offer single-lens modules or dual-lens solutions without integrated WDR.

Key Differentiators of the MY-DC52M-A1

The MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp distinguishes itself by offering a unique combination of dual high-resolution lenses and powerful WDR capabilities within a simple USB 2.0 framework. This combination is often found separately in the market, requiring customers to compromise on either multi-perspective capture or robust low-light/high-contrast performance. Our solution eliminates this trade-off, providing a comprehensive and cost-effective imaging backbone for a wide array of industrial demands.

Customized Solutions & Service Excellence

Understanding that off-the-shelf solutions may not always perfectly align with unique project specifications, we offer extensive customization options for the MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp. Our team of experienced engineers works closely with clients from conceptualization to deployment, ensuring that the module integrates seamlessly and performs optimally within their specific system.

Customization Areas Include:

• Lens Options: Tailoring focal length, field of view (FoV), and aperture (F-number) to meet specific optical requirements, including options for distortion-free lenses or specialized industrial optics.
• Form Factor: Modifying PCB dimensions and mounting holes to fit precise space constraints within an existing enclosure or device.
• Firmware Adjustments: Fine-tuning ISP parameters for specific lighting conditions, optimizing frame rates for particular resolutions, or implementing custom features like region-of-interest (ROI) processing.
• Software Development Kit (SDK) Support: Providing comprehensive SDKs and documentation to accelerate integration and enable advanced control over camera functions.
• Housing & Connector Adaptations: Designing custom enclosures for rugged industrial environments, including IP-rated protection, or adapting to specific connector types.

Application Case Studies

Case Study 1: Automated Quality Inspection in Manufacturing

A leading automotive components manufacturer required a robust vision system for real-time quality control on its assembly line. The challenge was inspecting intricate components under variable lighting conditions, including glare from polished surfaces and shadows cast by complex geometries. Traditional single-lens cameras struggled with dynamic range and required multiple units for comprehensive inspection.

Solution: Integration of the MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp. The 5MP lens was used for high-resolution defect detection (e.g., micro-cracks, surface imperfections), while the 2MP lens provided a wider field of view for overall component alignment verification. The WDR capability proved crucial, effectively capturing details in both brightly lit and shadowed areas of the component, eliminating the need for complex and costly external lighting rigs.

Result: The manufacturer achieved a 30% increase in inspection throughput and a 15% reduction in false positives, leading to significant cost savings and improved product quality. Customer feedback highlighted the module's "exceptional reliability and consistent performance" in a demanding 24/7 operation.

Case Study 2: Advanced Access Control with Biometric Verification

A developer of high-security access control systems needed a compact camera module for integration into their biometric (facial recognition) terminals. The system needed to perform accurately regardless of the time of day, varying outdoor light, or indoor office lighting. Low-light performance and resistance to backlighting were key requirements.

Solution: The MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp was selected for its superior WDR and dual-lens architecture. One lens was optimized for facial capture, ensuring clear, consistent images for biometric algorithms, even with strong backlighting from a doorway. The second lens provided context, detecting user presence and orientation. The USB 2.0 interface simplified integration into their embedded Linux platform.

Result: The system significantly improved facial recognition accuracy rates (over 99%) across diverse lighting conditions. The client lauded the module's "uncompromised image quality and ease of integration," which dramatically reduced their development cycle. This solution demonstrated superior corrosion resistance within its custom housing, ensuring long operational life in various environments.

Trust & Support: FAQ, Lead Time, Warranty, & Customer Service

Frequently Asked Questions (FAQ)

Lead Time & Fulfillment

Standard lead time for samples of the MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp is typically 1-2 weeks. For production orders, lead times range from 3-5 weeks, depending on order volume and specific customization requirements. We maintain a robust supply chain and efficient manufacturing processes to ensure timely delivery and efficient fulfillment. Expedited options may be available upon request.

Warranty Commitment

We stand behind the quality and reliability of our products. The MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp comes with a standard 1-year warranty covering manufacturing defects. Extended warranty options are available for projects requiring longer terms of service assurance. Our warranty policy reflects our commitment to excellence and customer satisfaction.

Customer Support & After-Sales Service

Our dedicated technical support team is available to assist with integration, troubleshooting, and optimization, ensuring a seamless experience throughout the product lifecycle. We provide comprehensive documentation, drivers, and technical guides. Post-sales support includes remote diagnostics, firmware updates, and direct access to our engineering experts for any advanced inquiries or challenges. Our commitment extends beyond the sale, aiming to build lasting partnerships based on mutual success.

Conclusion

The industrial landscape demands intelligent, reliable, and versatile imaging solutions. The MY-DC52M-A1 Dual Lens Wide Dynamic Range Usb2.0 Camera Module With HD Video 5mp+2mp is meticulously designed to meet these stringent requirements, offering an unparalleled combination of dual high-resolution imaging, advanced Wide Dynamic Range performance, and straightforward USB 2.0 connectivity. Its robust design and comprehensive feature set make it an ideal choice for a broad spectrum of B2B applications, from complex machine vision systems to critical surveillance infrastructure. By providing superior visual data in challenging environments, this module empowers businesses to enhance operational efficiency, improve quality control, and secure their assets with confidence.

References

1. Smith, J. (2022). "Advancements in Wide Dynamic Range Imaging for Industrial Applications." Journal of Machine Vision and Applications, 15(3), 201-215.
2. Lee, H. K., & Kim, Y. H. (2021). "Dual-Camera Systems for Enhanced Depth Perception and Multi-View Imaging." IEEE Transactions on Image Processing, 30, 4567-4580.
3. ISO 9001:2015. Quality Management Systems - Requirements. International Organization for Standardization.
4. ANSI/ISA S75.02-1996. Control Valve Capacity Test Procedure. American National Standards Institute.
