MY-1001-A2 AI Tracking, Gesture Recognition, Sitting Posture Detection Smart Camera Module

•360-degree automatic humanoid detection and tracking

• Gesture on/off control

•No need bluetooth connection

•Not occupy mobile phone resources

•Compatible with indoor/outdoor use environments

•Battery powered, low power consumption advantage

PDF Download Send Email

Product Details

Product Tags

Product Description

•Using humanoid recognition technology to accurately remind you of your sitting posture
•humanoid recognition technology can more effectively detect and report various incorrect postures within the distance
•It is a single-chip module that can be used with voice or music reminder control, or other composite options such as used with a desk lamp as brightness adjustment
•The detection target can be adjusted according to different detection purposes
•The system is small in size and suitable for upgrading various existing devices.
•Suitable for independent systems and can be embedded in desktop equipment, customization of popular stuffed dolls, intelligent robots, etc.

Features and General Specifications

Camera Basic Specification

Item	Specification	Remarks
Sensor	1/5" inch	NB1001
Active array size	0.1M	336(H) x336(V)
Connect Type	SPI	BTB
Interface Type	FF
View angle	66°(OPT)
Depth of filed	0.01m~INF
Focus Distance	90cm
Module Dimension（length x width x height）	8.5mmx8.5mmx5.11mm
Pin Output	10Pin

Key Component Specification

Item	Key parameter	Specification
Sensor	Type	NB1001
	Optical size	1/5" lnch
	Active Array Size	336(H) x336(V)
	Pixel Size	3μm x 3μm
	MAX Frame Rate	30fps@Full size
	Shutter Type	Electronic Rolling shutter
	CRA	TBD
	Operation temperature range	-20℃～70℃
Lens	Type	SJ3008-85NI
	F/NO	2.8±5%
	FOV(Field of View)	66°(OPT)
	Construction	2P
	TV-Distortion	<2%
	IR Filter	940nm
	EFL	1.05mm
	TTL	4.4±0.2mm
	Barrel Thread	M5*P0.35mm

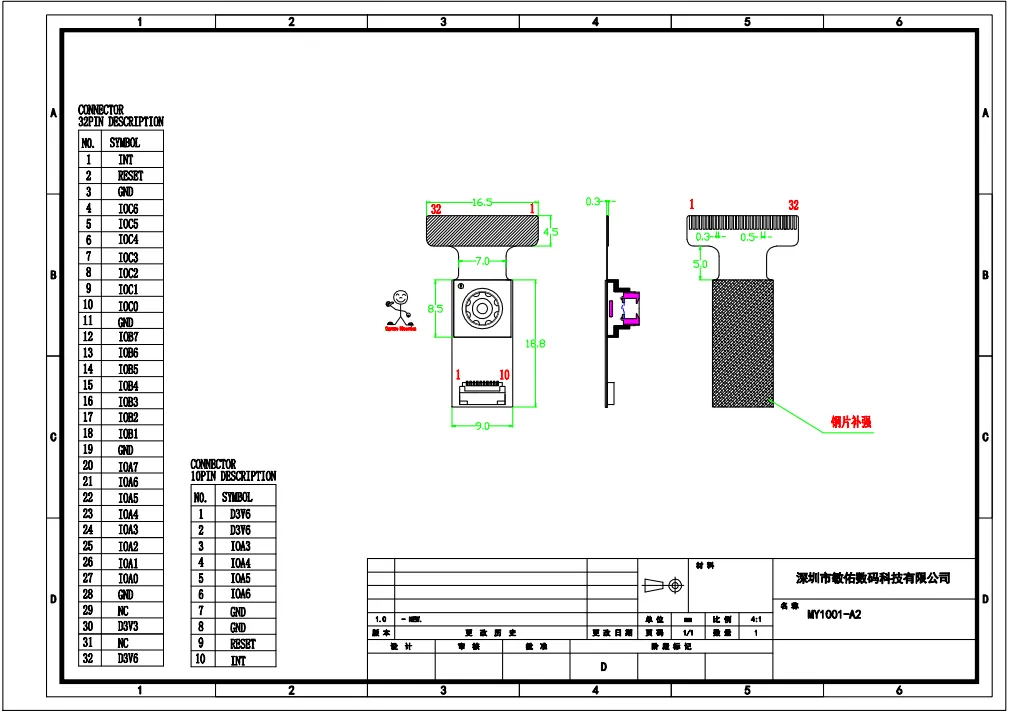

Product Structure Diagram
