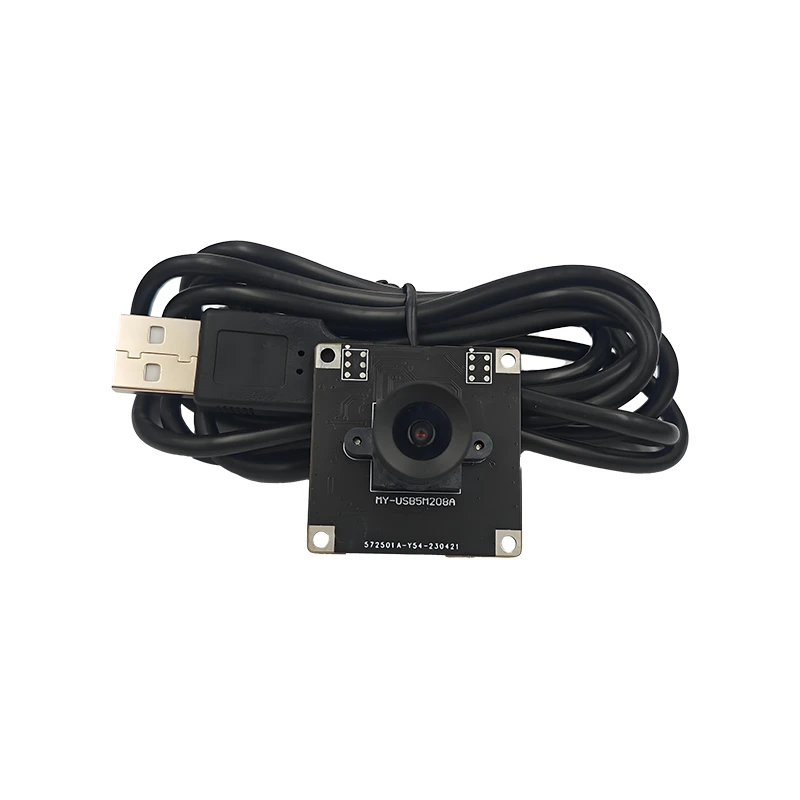

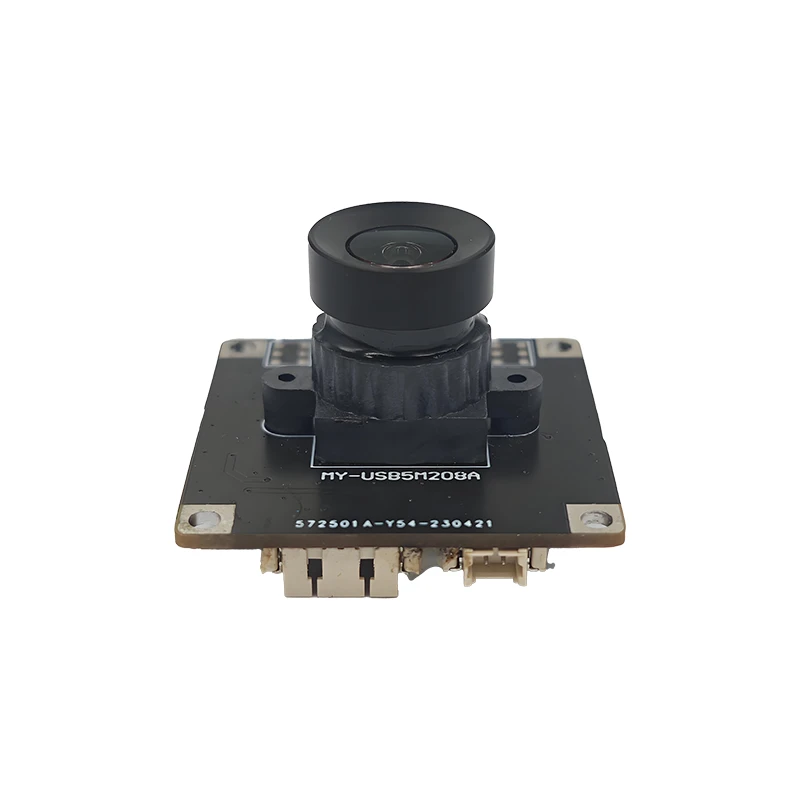

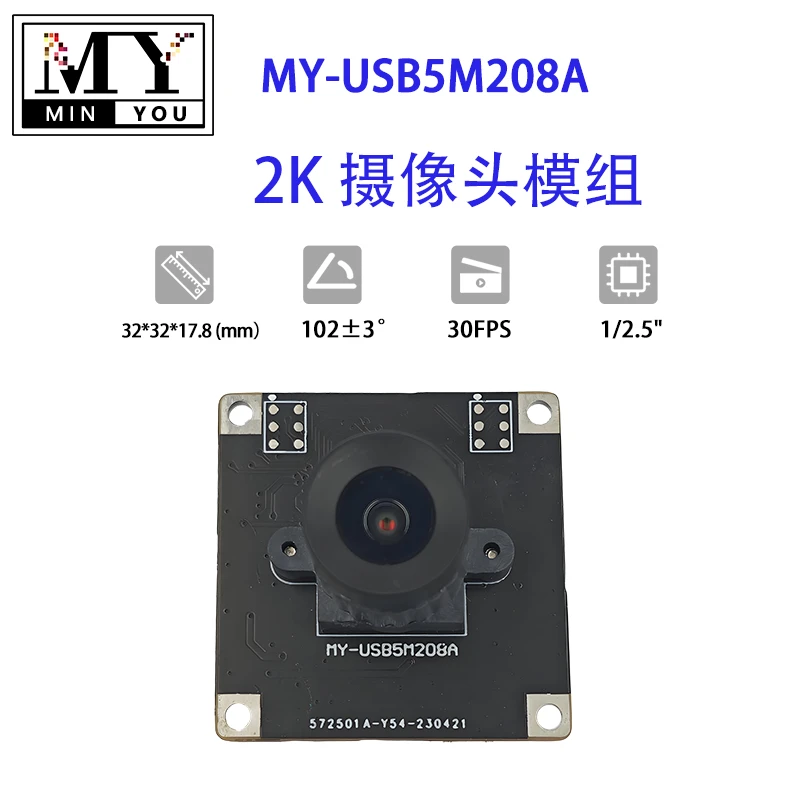

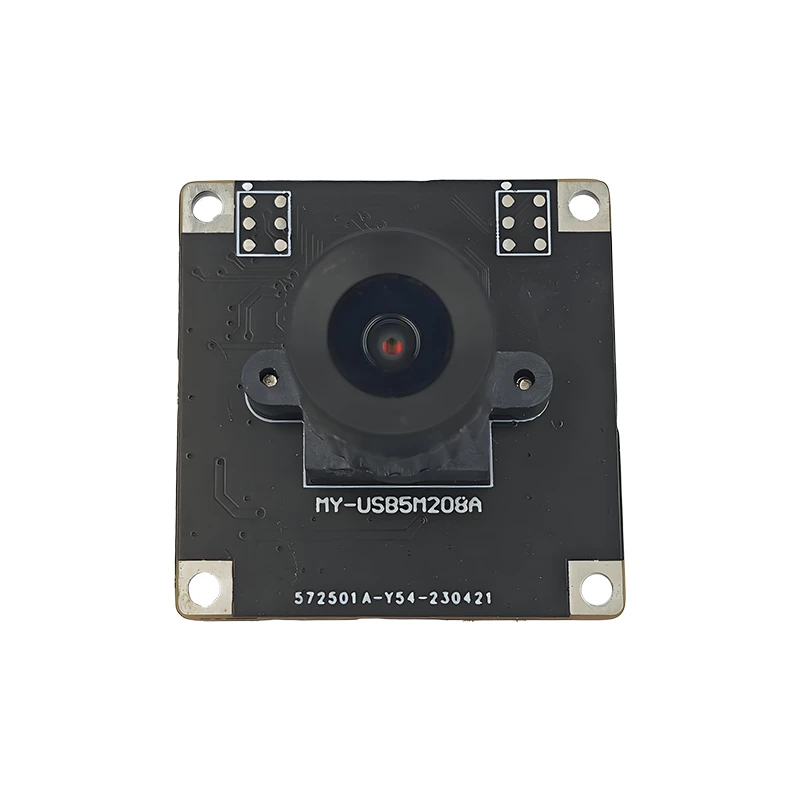

MY-USB5M208A 5MP HD Wide Dynamic Range USB Camera Module

Driver-free usb wide dynamic range camera module with microphone, can be used in video conferencing and live broadcast

• 5MP Full HD quality(2592*1944)；

• Fixed focus and AF auto focus: Optional

• 102° field of view; distortion-free lens

• Built-in omnidirectional microphone;

• No need usb driver, one line direct connection, plug and play directly;

PDF Download Send Email

Product Details

Product Tags

Product Description

5MP Full HD Webcam:

This 5MP webcam provides clear images and clear videos, make you enjoy clear HD effects, high resolution and true color images in any environment. The fixed-focus webcam allows you to find the right angle in live broadcasts or video conferences. Make sure you stay in the best condition during video calls and live broadcasts.

Plug and Play directly, no need software, easy to install. Compatible with Windows XP/7/8/10 and above, linux operating system, standard UVC protocol. It supports OBS, XBox one, Youtube, Facebook, Skype, Xsplit, Mixer. can be used on all desktops, laptops, etc.

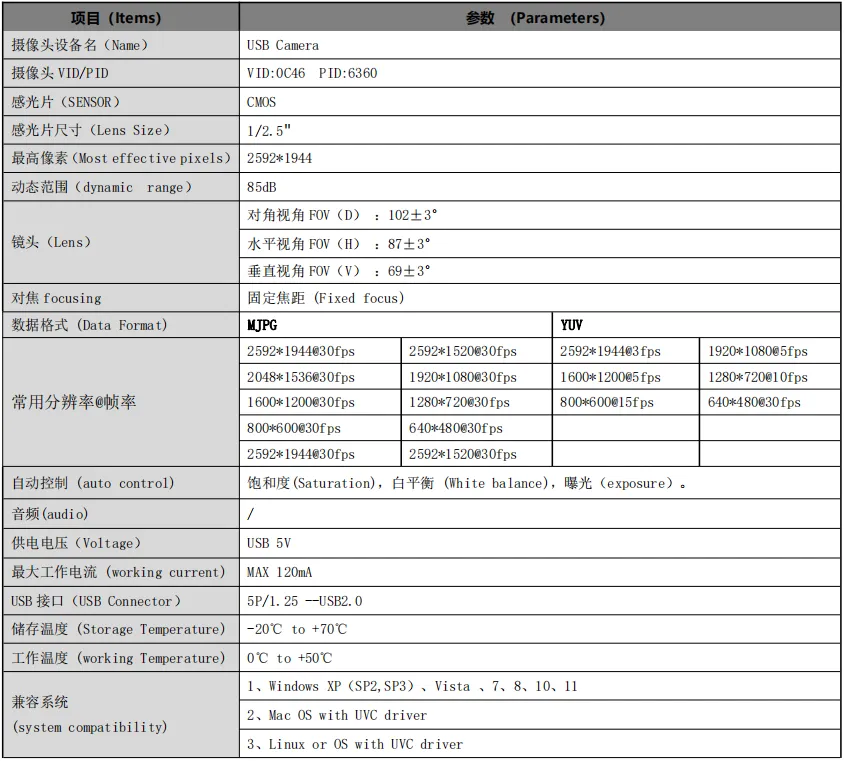

Features and General Specifications

Camera Basic Specification

Items	Parameters
Name	USB Camera
Camera VID/PID	VID:0C46 PID:6360
SENSOR	CMOS
Lens Size	1/2.5"
Most effective pixels	2592*1944
dynamic range	85dB
Lens	Diagonal perspectiveFOV（D）：102±3°
	Horizontal view angleFOV（H）：87±3°
	Vertical viewing angleFOV（V）：69±3°
focusing	Fixed focus
Data Format	MJPG		YUV
Common resolution @ frame rate	2592*1944@30fps	2592*1520@30fps	2592*1944@3fps	1920*1080@5fps
	2048*1536@30fps	1920*1080@30fps	1600*1200@5fps	1280*720@10fps
	1600*1200@30fps	1280*720@30fps	800*600@15fps	640*480@30fps
	800*600@30fps	640*480@30fps
	2592*1944@30fps	2592*1520@30fps
auto control	Saturation，White balance，exposure.
audio	/
Voltage	USB 5V
working current	MAX 120mA
USB Connector	5P/1.25 --USB2.0
Storage Temperature	-20℃ to +70℃
Working Temperature	0℃ to +50℃
system compatibility	1、Windows XP（SP2,SP3）、Vista 、7、8、10、11
	2、Mac OS with UVC driver
	3、Linux or OS with UVC driver

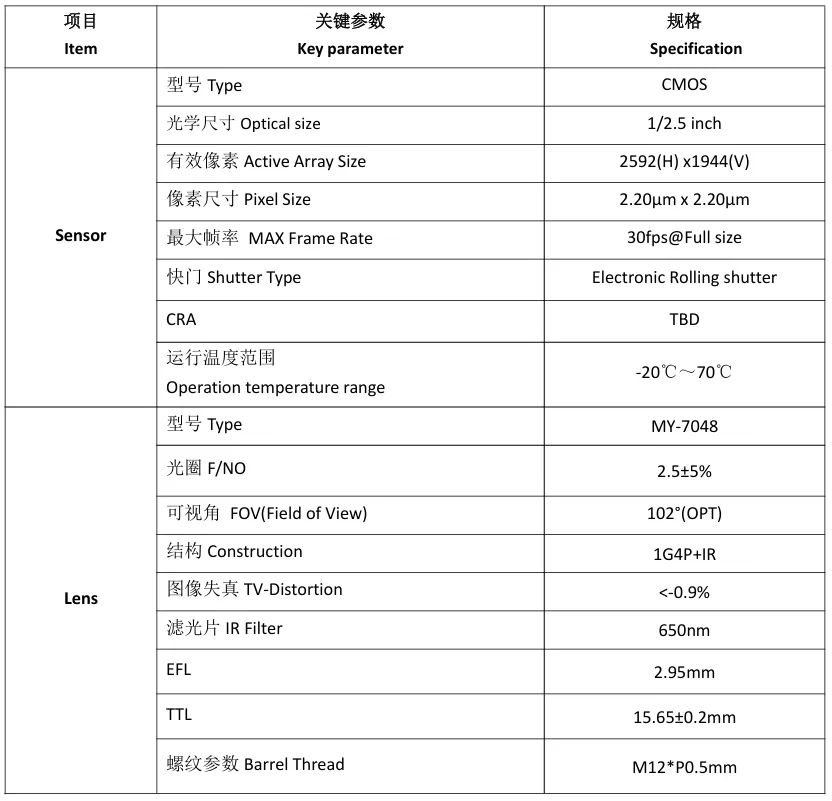

Key Component Specification

Item	Key parameter	Specification
Sensor	Type	CMOS
	Optical size	1/2.5 inch
	Active Array Size	2592(H) x1944(V)
	Pixel Size	2.20μm x 2.20μm
	MAX Frame Rate	30fps@Full size
	Shutter Type	Electronic Rolling shutter
	CRA	TBD
	Operation temperature range	-20℃～70℃
Lens	Type	MY-7048
	F/NO	2.5±5%
	viewing angle FOV(Field of View)	102°(OPT)
	Construction	1G4P+IR
	TV-Distortion	<-0.9%
	IR Filter	650nm
	EFL	2.95mm
	TTL	15.65±0.2mm
	Barrel Thread	M12*P0.5mm

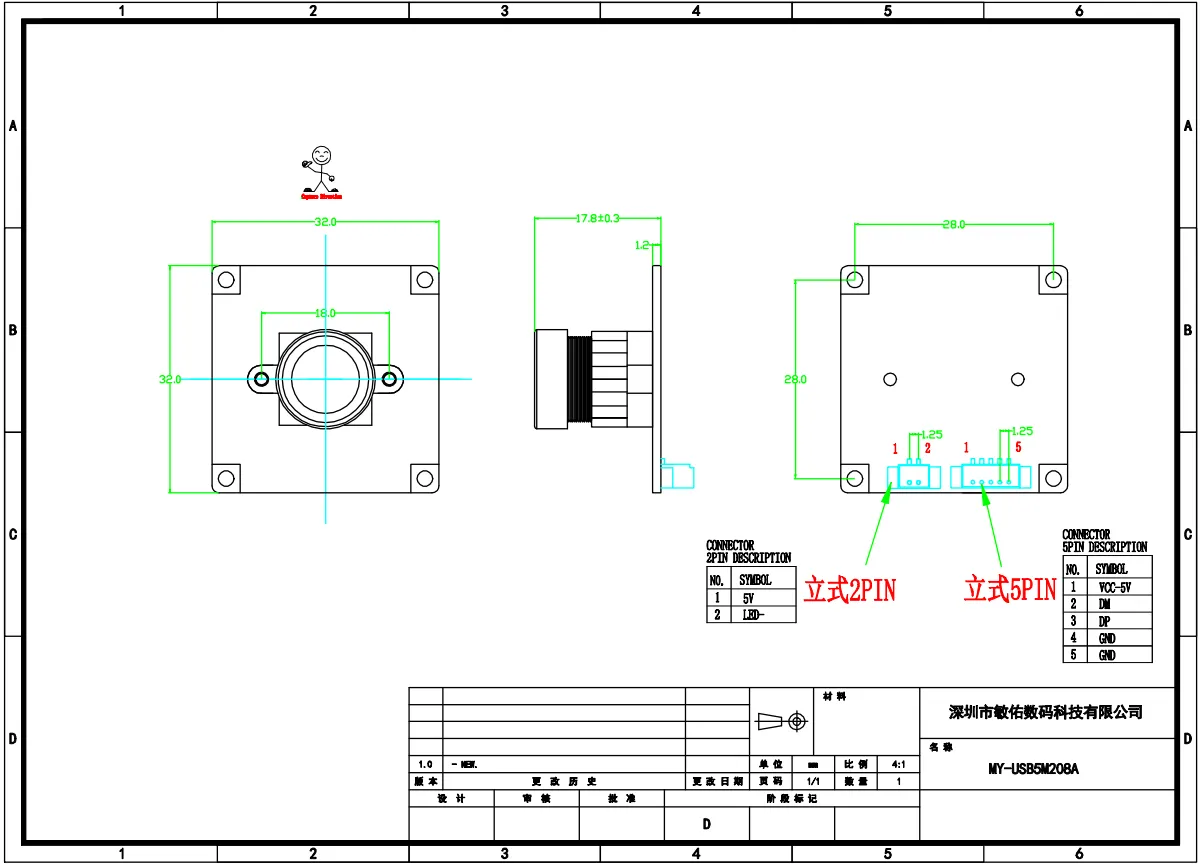

Product Structure Diagram
