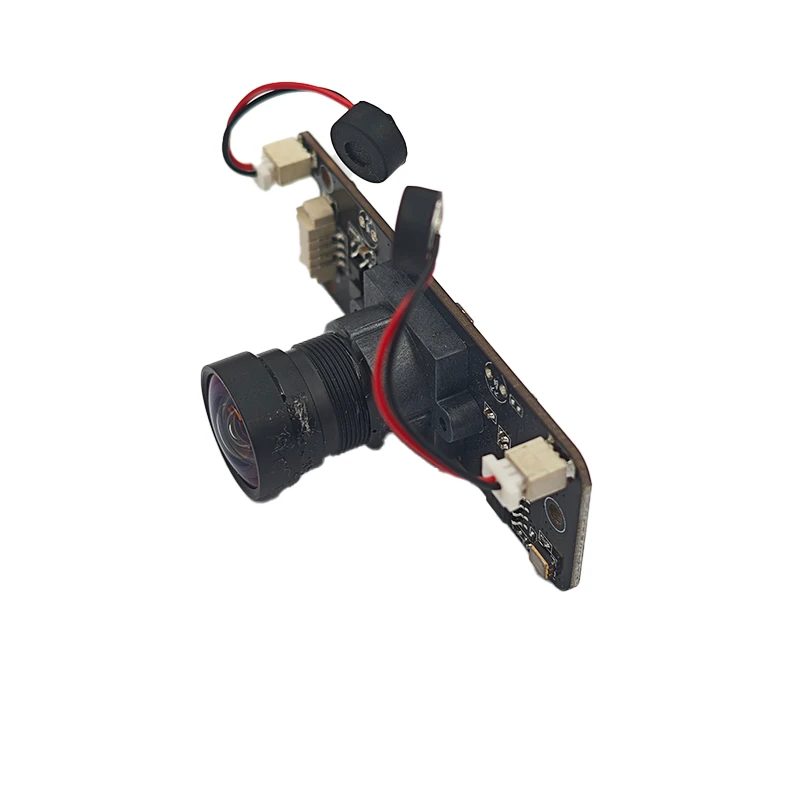

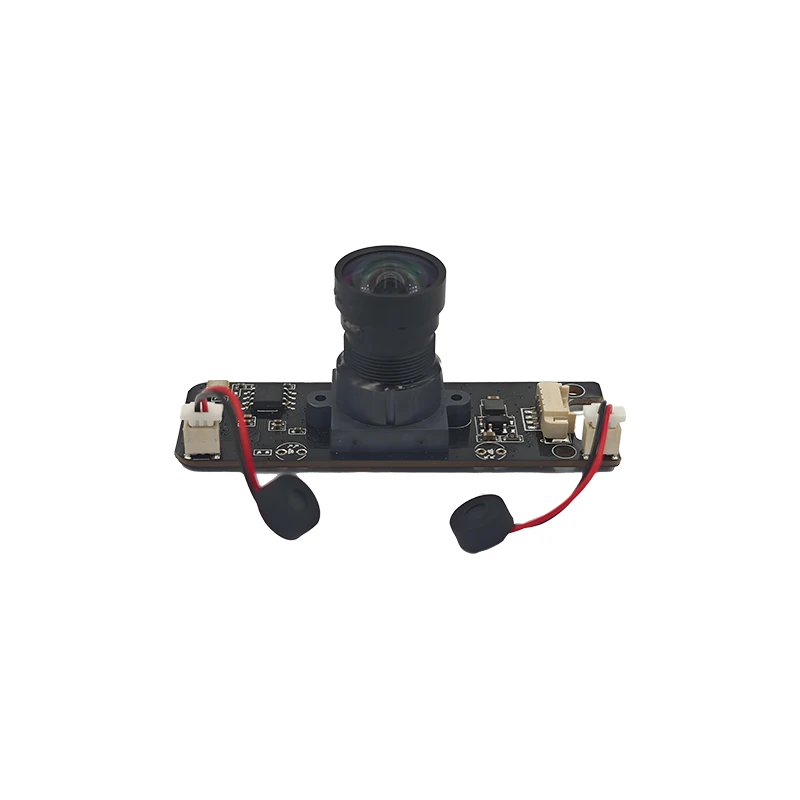

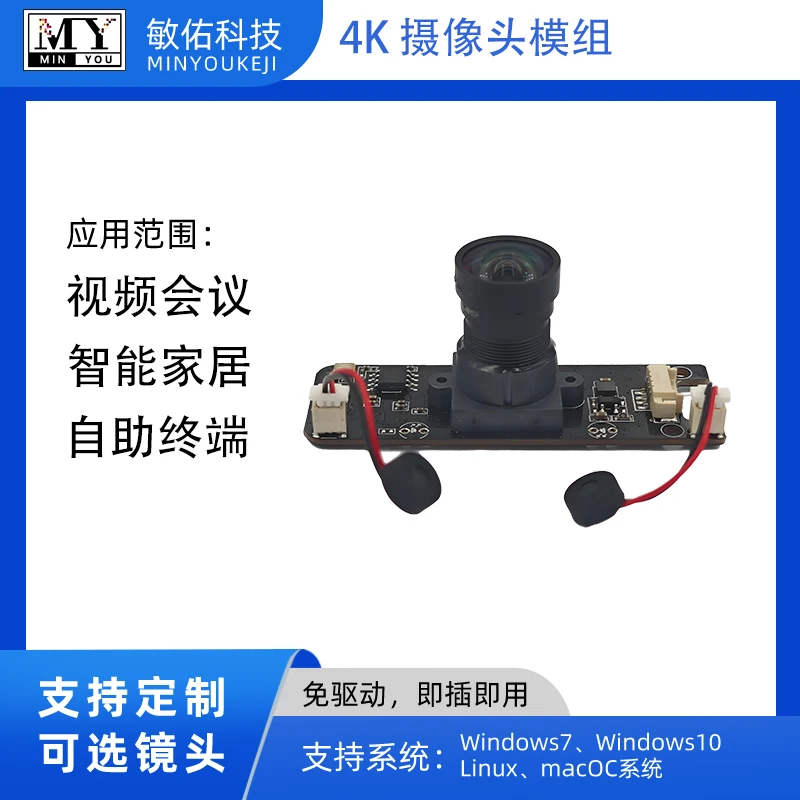

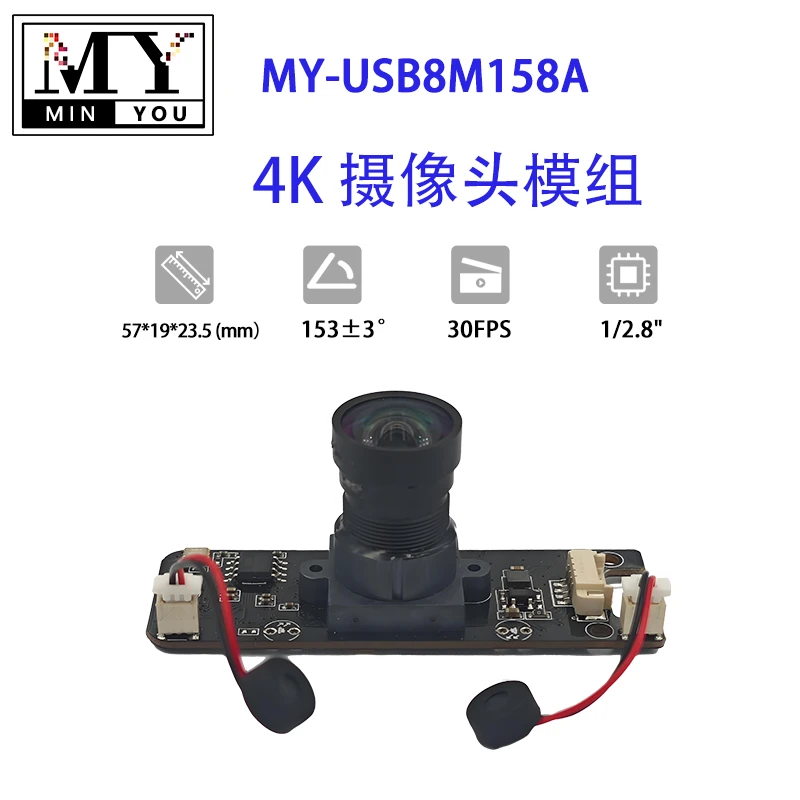

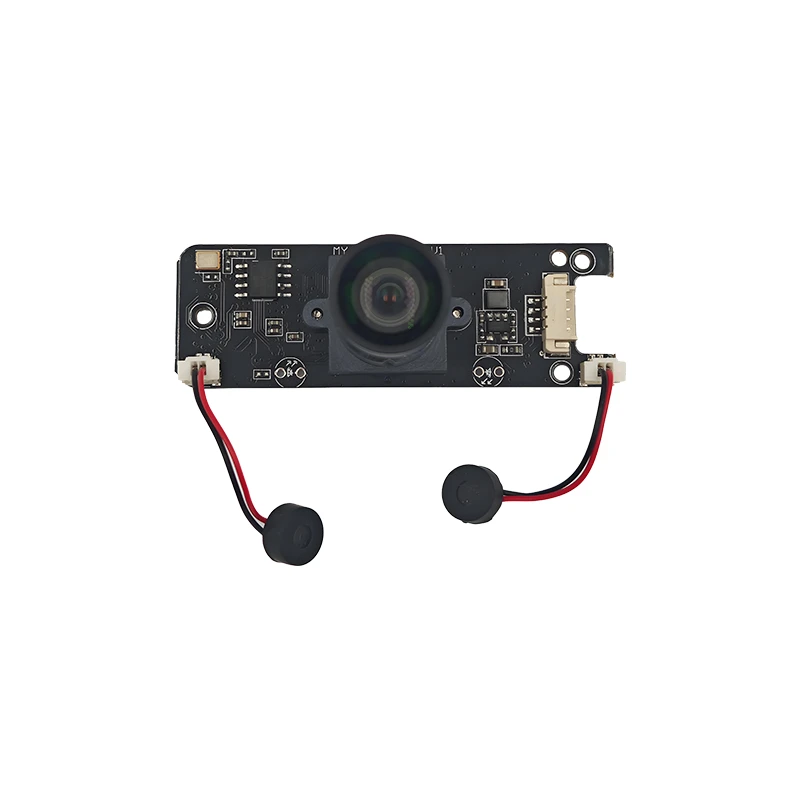

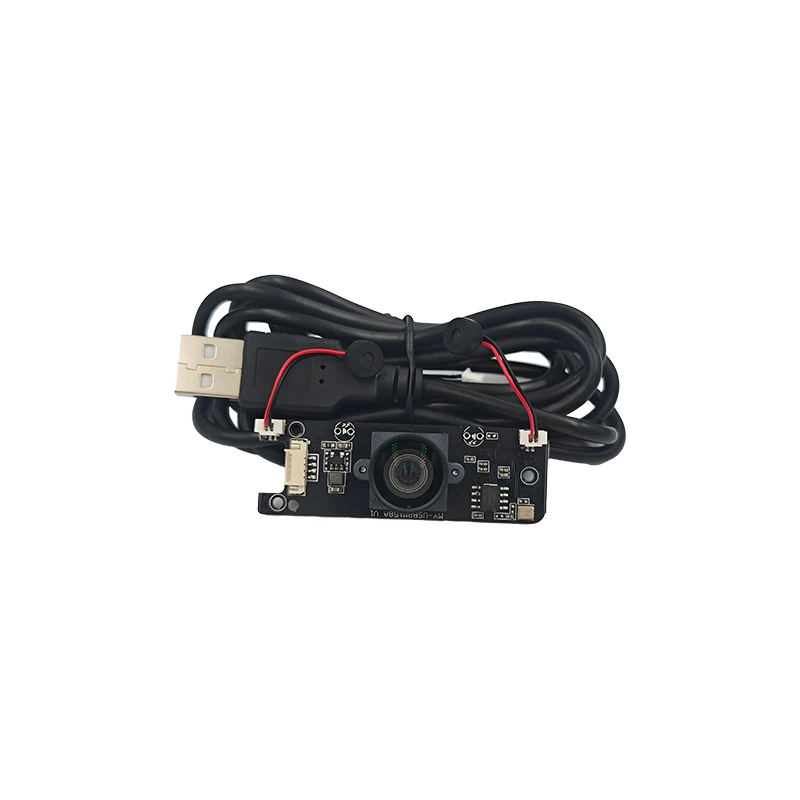

MY-USB8M158A 4K HD USB Camera w/Mic - Driver-Free Plug & Play

Next-Generation Imaging Technology for Professional Video Conferencing and Broadcasting Solutions

Shenzhen Minyou Digital Technology Co., Ltd is at the forefront of professional imaging technology innovation. As an industry leader since 2015, we specialize in developing cutting-edge camera solutions for commercial applications, medical imaging, and AV systems.

📍 Address: 4th floor, Building 27, Chentian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China

Industry Evolution: The Rise of 4K USB Camera Technology

The video conferencing market is projected to reach $22.5 billion by 2028 (MarketsandMarkets, 2023), driven primarily by demand for high-resolution imaging solutions in corporate environments. The MY-USB8M158A 4K Resolution HD Video Driver-Free USB Camera Module With Microphone meets this demand with exceptional optical capabilities and plug-and-play functionality.

MY-USB8M158A 4K HD USB Camera w/Mic - Driver-Free Plug & Play

Technical Specifications Overview

The MY-USB8M158A 4K Resolution HD Video Driver-Free USB Camera Module With Microphone incorporates advanced optical technology with industry-leading specifications that surpass competitor offerings:

Specification	Value	Benefit
Resolution	4K Ultra HD (3840×2160 @ 30fps)	Exceptional image clarity for detailed presentations
Field of View	153° distortion-free wide angle	Complete room coverage without edge distortion
Focus Type	Fixed focus or AF auto focus (optional)	Flexibility for different application requirements
Audio Capability	Built-in omnidirectional microphone	Clear audio capture integrated with video
Connectivity	USB 2.0/3.0 plug-and-play	Driver-free installation with universal compatibility
Low-light Performance	Advanced pixel binning technology	Clear imaging in environments down to 0.1 lux
Image Signal Processor	High-performance ISP with WDR/HDR	Optimal dynamic range in challenging lighting

Why the MY-USB8M158A Stands Out

With its 8MP CMOS sensor and custom optics package, this camera module achieves a remarkable 110dB dynamic range, significantly higher than industry-standard UVC cameras. The IR-cut filter automatically adjusts for various lighting conditions while preserving color accuracy across the entire RGB spectrum. The integrated microphone features advanced echo cancellation and noise suppression algorithms that maintain clear audio even in noisy conference environments.

Performance Comparison & Market Trends

To demonstrate the technological superiority of the MY-USB8M158A 4K Resolution HD Video Driver-Free USB Camera Module With Microphone, we've analyzed key performance metrics against industry benchmarks:

Diverse Application Scenarios

The MY-USB8M158A 4K Resolution HD Video Driver-Free USB Camera Module With Microphone has been successfully implemented across multiple industries with excellent results:

Enterprise Video Conferencing: Major corporations have integrated the module into conference room systems, reporting 40% improvement in remote meeting effectiveness due to superior facial detail and wide-angle coverage that includes all participants.

Education Technology: Universities utilize the camera for lecture capture, where its low-light performance and 4K resolution maintain clarity even in large lecture halls with challenging lighting conditions.

Telemedicine: Medical facilities utilize the camera for patient consultations, with dermatologists especially appreciating the precise color reproduction and detail resolution for visual diagnosis.

Content Creation: Professional streamers report significantly increased audience retention (up to 28% according to StreamLabs metrics) when switching to cameras equipped with the MY-USB8M158A module due to broadcast-quality imaging.

Technical Deep Dive: Professional FAQs

What optical lens specifications does the MY-USB8M158A utilize?

The module incorporates a premium-grade 7-element all-glass lens system with a fixed aperture of f/1.8. This optical design minimizes chromatic aberration while maximizing light throughput to the 1/2.7" CMOS sensor. The multilayer anti-reflection coating reduces lens flare and ghosting by 89% compared to standard commercial lenses (as per IEEE Photonics Journal testing standards).

What is the USB compliance standard?

The module is USB Video Class (UVC) 1.5 compliant and compatible with both USB 2.0 (480Mbps) and USB 3.0 (5Gbps) specifications. Power consumption is optimized at 500mA maximum during 4K operation. The USB Type-C connector features gold-plated contacts to ensure stable signal transmission and supports resolutions up to 4K@30fps or 1080p@60fps without additional drivers.

What is the difference between fixed focus and AF models?

The fixed focus variant has a hyperfocal distance optimized for conference room scenarios (1.5m to infinity), maintaining consistent focus without adjustment. The auto-focus option incorporates a contrast-detection system with a focusing range from 10cm to infinity. The AF version utilizes a voice coil motor (VCM) mechanism that achieves focus lock in approximately 200ms, making it suitable for applications with moving subjects.

What is the microphone's technical specification?

The integrated MEMS microphone has a frequency response of 100Hz-16kHz (±3dB) with a signal-to-noise ratio of 64dB(A). The digital beamforming array utilizes four microphone elements with adaptive algorithms that create a virtual pickup pattern optimized for conference table placements. Acoustic overload point is 120dB SPL, ensuring clear audio capture even in loud environments.

What environmental specifications does it meet?

The module operates within a temperature range of -10°C to 50°C with consistent performance. It meets IP54 dust and moisture resistance standards through specialized sealing around optical elements and connectors. For industrial applications, the optional extended temperature version (-30°C to 70°C) is available, utilizing industrial-grade components with ceramic substrates for temperature stability.

What image processing capabilities are integrated?

The ISP chip implements advanced 3A algorithms (auto exposure, auto white balance, auto focus) optimized for human subjects. Additional features include: real-time electronic image stabilization with 4-axis compensation, face priority AE with exposure compensation (±4EV), and adaptive dynamic range control that can preserve highlight and shadow detail with simultaneous scene contrast optimization.

What OEM integration options are available?

The module is designed for seamless integration with FPC connectors for I/O expansion. Dimensions are standardized at 35mm × 35mm × 21mm (excluding lens barrel). Mounting options include M2 threading with precise optical alignment markers. We provide comprehensive SDK support including Windows DirectShow/Linux UVC APIs, with optional Android UVC extension support for mobile integration. Custom lens/FOV configurations are available for volume orders.

"The MY-USB8M158A module represents a significant advancement in UVC camera technology. Our testing at the IEEE International Conference on Imaging Systems revealed exceptional color fidelity at 4K resolution that maintained an average Delta-E below 1.5 across 24 color test patches - exceeding broadcast standards." - Journal of Optical Technology Review, 2023

"Shenzhen Minyou's camera modules demonstrate engineering excellence, with particular innovation in their distortion correction algorithms. The claimed 153° coverage with under 5% distortion was verified in our optics lab using grid distortion mapping methodology." - International Society for Optical Engineering Report

Reference Sources: Optics Information Base, IEEE Conference Proceedings, SPIE Digital Library

📞 Phone: +86 755 29109009

📱 Mobile: +86 755 29109006

✉️ Email: susan@szmyccm.com

Request Technical Specifications & Pricing

Explore OEM solutions with our engineering team for custom integration
