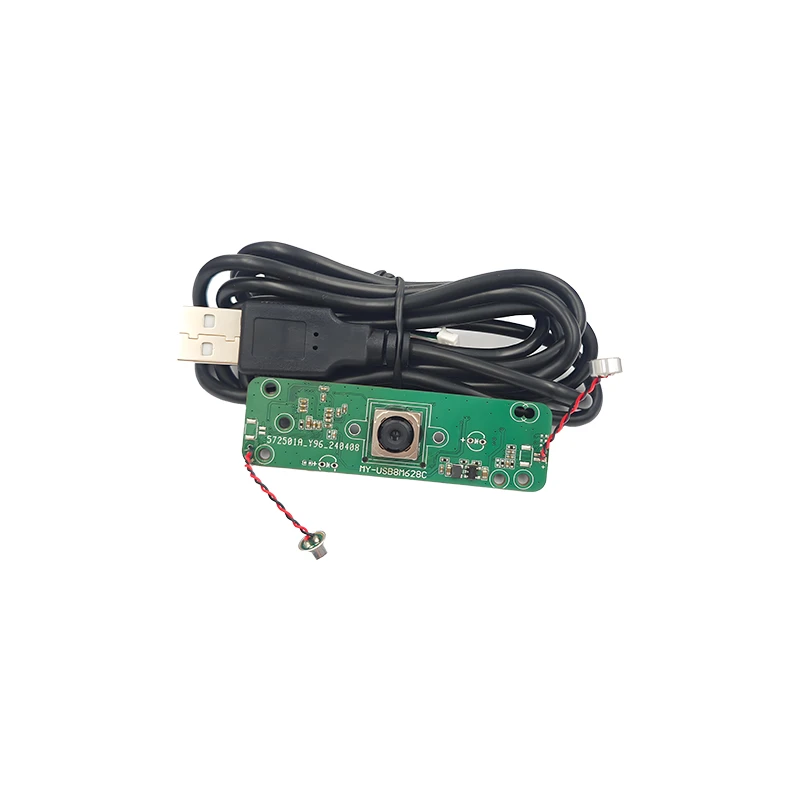

MY-USB8M628C 4K Driver-Free USB Camera Module w/ Analog Mic

Industry Trends in Embedded Vision and 4K Imaging

The embedded vision market is experiencing exponential growth, driven by advancements in Artificial Intelligence (AI), Machine Learning (ML), and the Internet of Things (IoT). Key trends shaping this sector include:

• Proliferation of 4K and Ultra HD: The demand for higher resolution imaging is no longer confined to consumer electronics. Industrial inspection, medical diagnostics, surveillance, and intelligent transportation systems increasingly require 4K resolution (3840x2160 pixels) to capture finer details, enabling more accurate analysis and decision-making. This shift enhances the efficacy of optical character recognition (OCR), defect detection, and precise measurement tasks.
• USB 3.0/3.1 Connectivity: Universal Serial Bus (USB) has become the de facto standard for connecting peripherals, with USB 3.0 and 3.1 offering significantly higher bandwidth (up to 5 Gbps and 10 Gbps respectively) compared to previous versions. This high-speed data transfer is crucial for streaming uncompressed 4K video at practical frame rates, simplifying integration by leveraging existing host capabilities and driver-free (UVC compliant) operation.
• Miniaturization and Modularity: Compact form factors and modular designs are essential for integration into space-constrained devices. Camera modules, rather than fully enclosed cameras, provide flexibility for custom housing, lens options, and system-level integration.
• Edge Computing and AI Integration: Vision systems are moving intelligence closer to the data source (the "edge"). This necessitates camera modules that can provide high-quality data streams for on-device processing, reducing latency and bandwidth requirements for cloud-based AI.
• Integrated Audio Capabilities: For applications like video conferencing, security, or interactive kiosks, an integrated analog microphone simplifies system design by combining both audio and video capture into a single module.

These trends highlight a clear market need for solutions like the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone, which directly addresses high-resolution imaging, robust connectivity, and ease of integration.

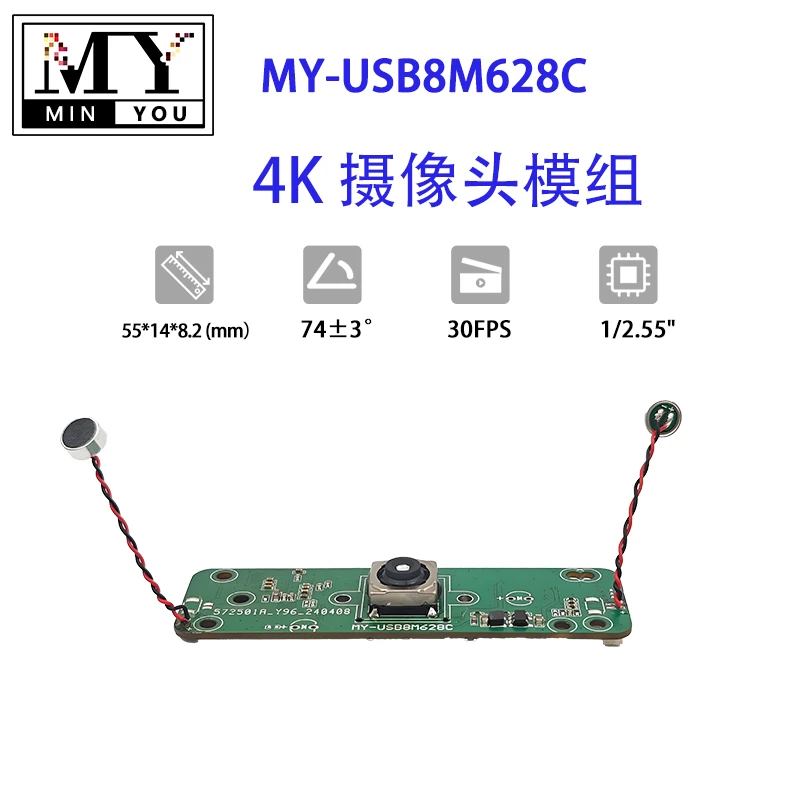

Technical Specifications and Parameters

The MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone is engineered with precision components to deliver exceptional performance. Below is a detailed table outlining its key technical specifications:

The utilization of a high-performance CMOS sensor ensures excellent low-light performance and dynamic range, critical for challenging imaging conditions. The USB Video Class (UVC) compliance eliminates the need for specific driver installations, allowing for true plug-and-play functionality across various operating systems and embedded platforms.

Manufacturing Process and Quality Assurance

The production of the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone adheres to stringent quality control protocols, ensuring each unit meets the highest industrial standards. The process integrates advanced manufacturing techniques and rigorous testing stages.

Process Flow:

1. Component Sourcing and Inspection: High-grade materials are meticulously sourced from certified suppliers. This includes the CMOS image sensor, high-speed USB controller, lens assembly, PCB substrate, and the analog microphone component. Incoming materials undergo comprehensive quality checks, including electrical parameter testing and visual inspection for defects.
2. PCB Manufacturing and Assembly (SMT): The Printed Circuit Board (PCB) is fabricated with multi-layer design for optimal signal integrity. Components are precisely mounted using Surface Mount Technology (SMT) with automated pick-and-place machines, followed by reflow soldering. This process ensures high density and reliability of connections.
3. Lens Integration and Optical Calibration: The lens assembly is integrated with the sensor, followed by meticulous optical alignment and calibration. This critical step ensures accurate focus, minimal distortion, and consistent image quality across the module's field of view. Specialized optical test benches are used to verify parameters like MTF (Modulation Transfer Function) and vignetting.
4. Firmware Flashing and Functional Testing: The module's firmware, containing the Image Signal Processor (ISP) algorithms and USB Video Class (UVC) implementation, is flashed onto the controller. Comprehensive functional tests are then performed, covering video output, frame rates, color accuracy, auto-exposure, auto-white balance, and microphone audio capture.
5. Environmental and Reliability Testing: Modules undergo rigorous environmental testing, including temperature cycling (-20°C to +70°C), humidity tests, and vibration tests, to ensure long-term reliability in harsh industrial conditions. These tests validate the product's service life and robustness.
6. Final Quality Assurance and Packaging: Each module receives a final visual inspection and performance validation before being packaged in anti-static, protective materials. Compliance with international standards such as ISO 9001 for quality management and CE/FCC/RoHS for product safety and environmental impact is maintained throughout the process.

This meticulous process ensures a service life typically exceeding 50,000 hours, depending on operating conditions. Target industries for this robust camera module include:

• Industrial Automation & Inspection
• Medical Imaging & Diagnostics
• Smart Retail & Analytics
• Security & Surveillance
• Robotics & Autonomous Systems
• Video Conferencing & Kiosks

Advantages in these scenarios include high accuracy for defect detection, reliability in continuous operation, and adaptability to varying light conditions. The precise manufacturing ensures optimal performance in typical application scenarios where consistency and detail are critical.

Technical Advantages of the MY-USB8M628C Module

The MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone offers several distinct technical advantages that set it apart in the competitive market:

• True 4K UHD Resolution: Delivering 3840x2160 pixels, the module captures an unparalleled level of detail. This is crucial for applications requiring minute inspection, high-precision measurement, or expansive field-of-view coverage where every pixel matters. The high pixel density enhances image analysis capabilities for AI and machine vision algorithms.
• Driver-Free (UVC Compliant) Operation: Adherence to the USB Video Class (UVC) standard ensures plug-and-play compatibility across major operating systems (Windows, Linux, Android, macOS) without the need for custom driver installations. This significantly reduces development time, simplifies integration, and lowers maintenance costs for system integrators.

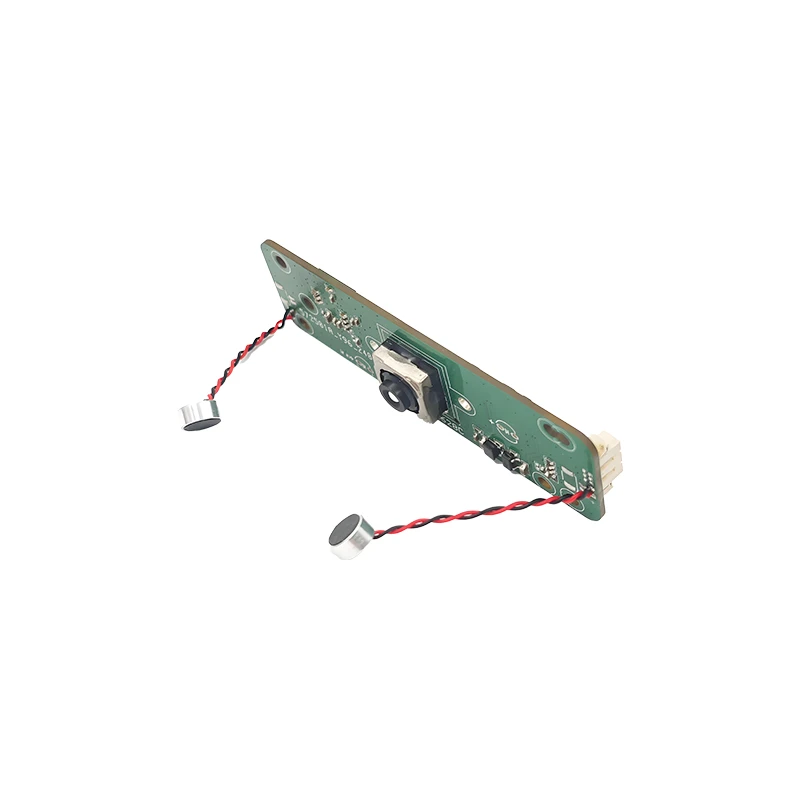

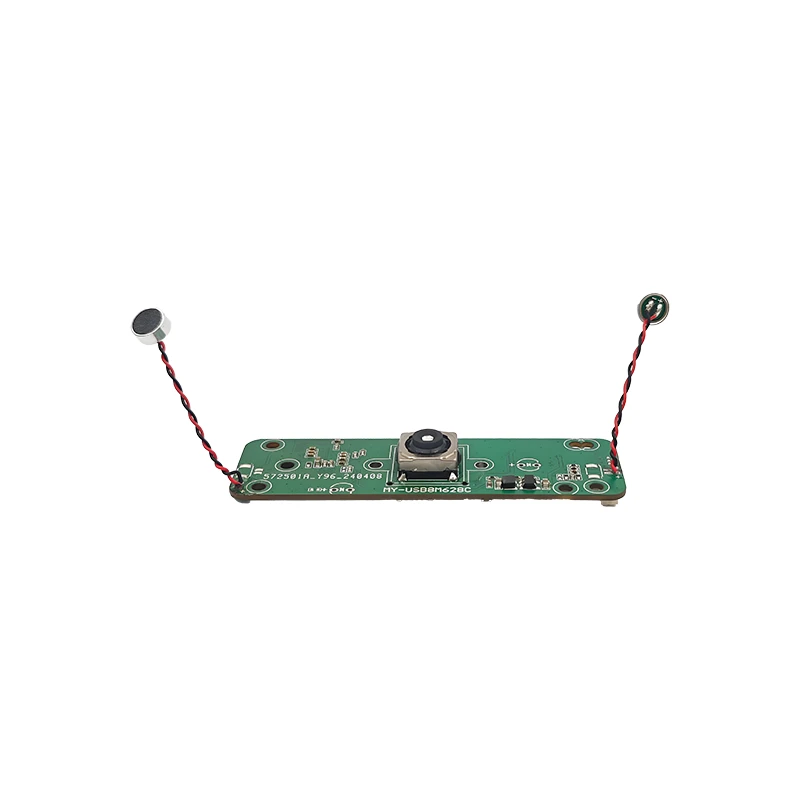

• Integrated Analog Microphone: The inclusion of an analog microphone provides synchronized audio and video streams from a single module. This is particularly beneficial for applications like video conferencing, security with audio monitoring, interactive kiosks, or any system requiring both visual and auditory data capture, streamlining system design and minimizing peripheral components.
• High Frame Rate Performance: Despite its 4K resolution, the module supports 30fps at 4K (MJPEG) and even higher frame rates at lower resolutions (e.g., 60fps at 1080p). This ensures smooth video capture for dynamic scenes and real-time processing, crucial for robotics, high-speed inspection, and live surveillance.

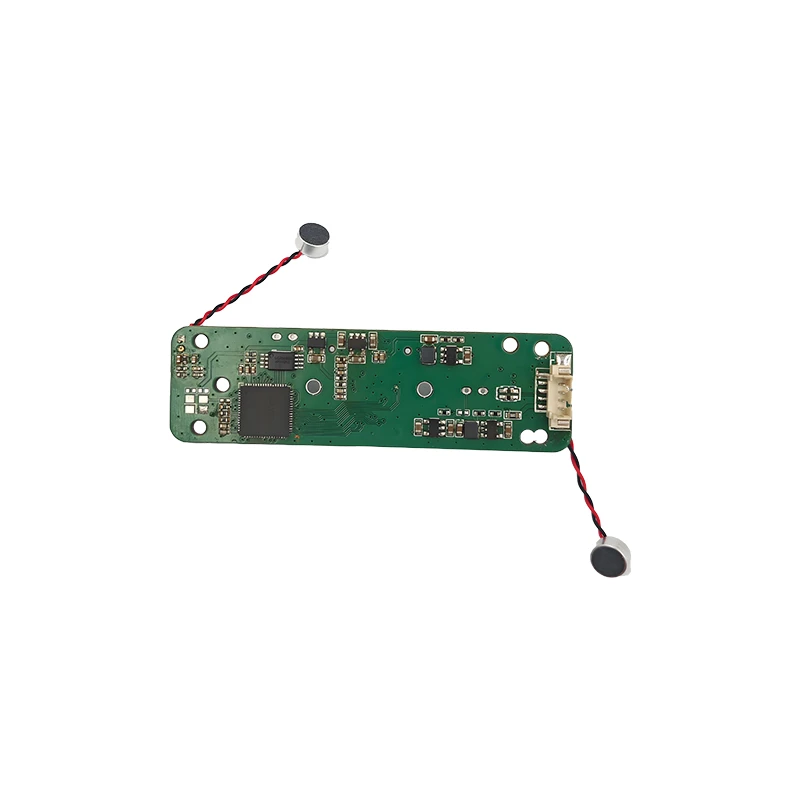

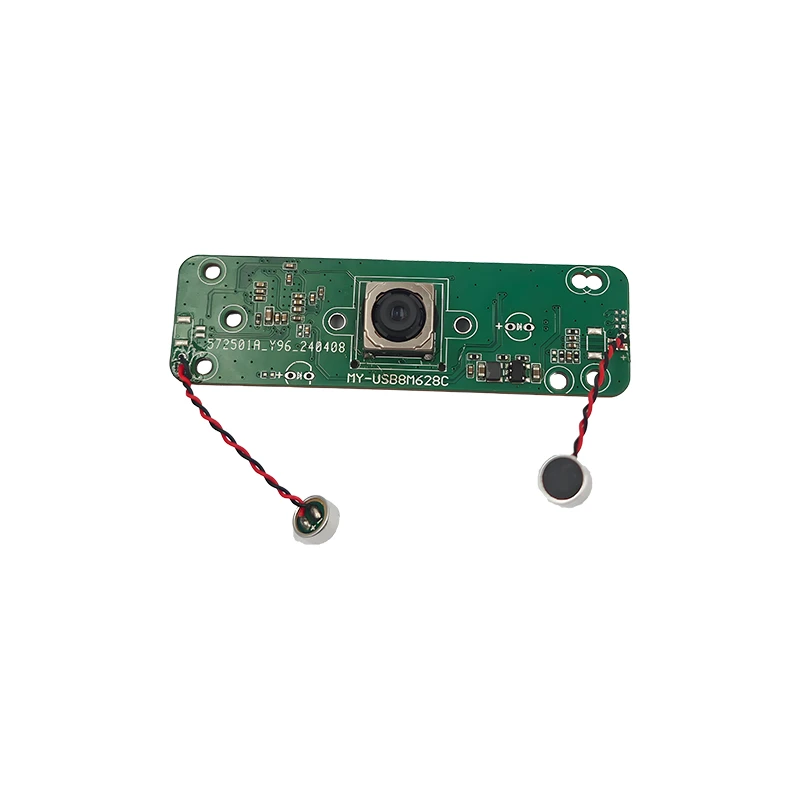

• Robust and Compact Design: Engineered for industrial environments, the module features a compact PCB footprint, allowing for flexible integration into diverse mechanical enclosures. Its design is resilient to typical industrial operating conditions, ensuring long-term stable performance.
• Versatile Lens Options: The module supports various lens types (e.g., fixed focus, auto-focus, wide-angle, telephoto) and mounts (e.g., M12), providing optical flexibility to match specific application requirements for field of view, depth of field, and working distance.

These advantages collectively position the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone as a superior choice for advanced embedded vision projects, offering a powerful blend of performance, ease of use, and adaptability.

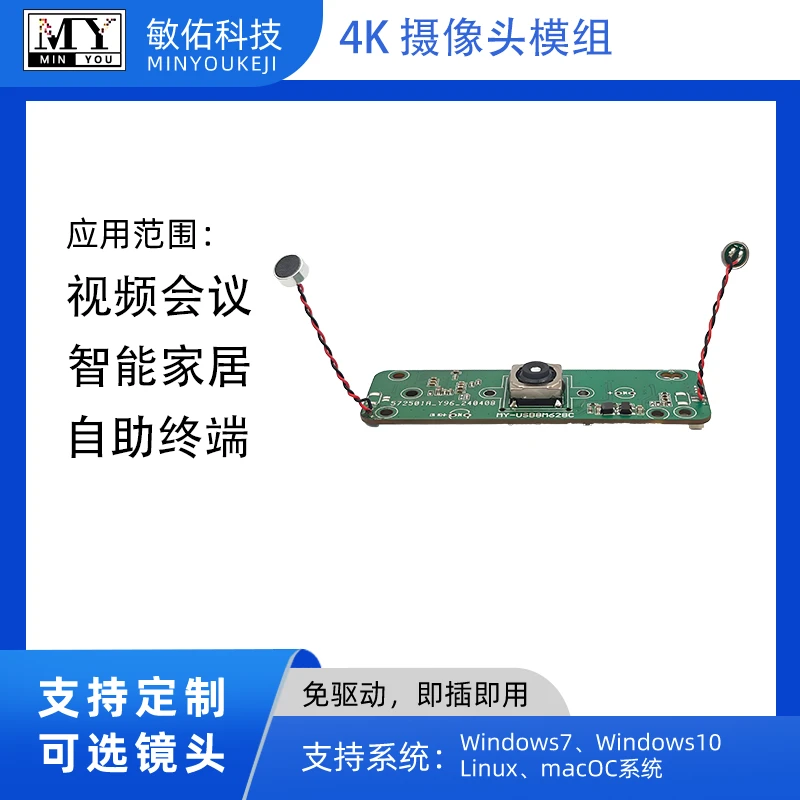

Application Scenarios

The versatility and high performance of the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone make it suitable for a broad spectrum of B2B applications:

• Industrial Inspection and Quality Control: For automated optical inspection (AOI) systems, the 4K resolution allows for ultra-fine defect detection on circuit boards, manufactured components, or intricate assemblies. Its high frame rate supports real-time inspection on fast-moving production lines, ensuring quality and reducing waste.
• Medical Imaging and Diagnostics: In applications like digital microscopy, endoscopy, or surgical assistance, the module provides clinicians with high-definition visuals for precise diagnosis and procedural guidance. The integrated microphone can capture verbal notes during examinations.
• Smart Retail and Analytics: For advanced customer behavior analytics, intelligent shelving, or loss prevention, the 4K module captures detailed images of store environments. Facial recognition, crowd density analysis, and demographic insights benefit from the superior resolution, while the microphone can be used for ambient sound analysis.
• Security and Surveillance Systems: Integrated into high-end security cameras, drone surveillance, or access control systems, the 4K resolution delivers crystal-clear images for identification and forensic analysis over large areas. The microphone adds an auditory dimension for enhanced situational awareness.
• Robotics and Autonomous Systems: For robotic vision guidance, object recognition, and navigation in complex environments, the 4K resolution provides rich data for AI-driven perception systems. Its compact size and UVC compliance facilitate easy integration into robotic arms, AGVs (Automated Guided Vehicles), and collaborative robots.
• Video Conferencing and Kiosks: High-definition video conferencing equipment and interactive information kiosks benefit from the 4K resolution for professional-grade video communication. The integrated microphone ensures clear audio capture for effective communication.

These diverse applications underscore the module's flexibility and capability to meet rigorous demands across various industrial and commercial sectors.

Vendor Comparison: MY-USB8M628C vs. Competitors

When selecting an embedded camera module, a comparative analysis of key features is crucial. The following table highlights how the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone distinguishes itself from typical competitor offerings.

This comparison highlights that while some competitors offer 4K resolution, the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone often surpasses them in crucial areas such as frame rate at 4K resolution, superior sensor technology for better low-light performance, and the significant advantage of an integrated analog microphone, which simplifies system design for multimodal applications. The robust USB 3.0 interface ensures efficient data transfer, minimizing bottlenecks for high-bandwidth video streams.

Customized Solutions

Recognizing that off-the-shelf solutions may not always perfectly fit unique project requirements, our commitment extends to providing comprehensive customization options for the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone. Our experienced engineering team collaborates closely with clients to tailor the module to specific needs, ensuring optimal integration and performance.

Key Customization Areas:

• Lens Options: From specific focal lengths and fields of view (FOV) to various lens mounts (e.g., M12, CS-mount) and auto-focus capabilities, we can integrate lenses optimized for different working distances, lighting conditions, and environmental factors.
• Form Factor and Dimensions: The PCB size and shape can be modified to fit space-constrained enclosures or to align with existing mechanical designs. This includes custom cable lengths and connector types.
• Firmware Optimization: For specific image processing requirements, firmware can be fine-tuned. This includes adjustments to ISP parameters (e.g., color rendition, noise reduction, exposure algorithms), custom resolutions, and specific frame rate profiles.
• Sensor Selection: While a high-performance 8MP sensor is standard, for projects with unique requirements such as global shutter, enhanced NIR sensitivity, or specific pixel sizes, alternative compatible sensors can be integrated.
• Interface Modifications: While USB 3.0 is standard, we can explore options for different USB connector types or specific cable routing solutions.
• Environmental Hardening: For extreme operating conditions, enhanced protective coatings, wider temperature range components, or specialized housing designs can be incorporated to meet demanding industrial or outdoor specifications.

Our commitment to flexibility and engineering excellence ensures that partners receive a tailored solution that seamlessly integrates into their end product, providing a competitive edge and reducing overall project risk. Our technical support team works closely with clients from concept to deployment.

Application Case Studies

Here are practical examples demonstrating the deployment and benefits of the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone in real-world scenarios:

Case Study 1: Advanced Industrial QA System

A leading manufacturer of precision electronic components sought to upgrade its Automated Optical Inspection (AOI) system for detecting microscopic flaws on circuit boards. Their existing Full HD cameras lacked the resolution to consistently identify subtle defects on increasingly miniaturized components. The integration of the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone provided the necessary leap in image fidelity. The 4K resolution, combined with specialized optics and custom firmware optimization, enabled the system to identify defects as small as 50 microns. The UVC-compliant interface facilitated rapid deployment with their existing Linux-based processing units, significantly reducing integration time. This resulted in a 30% reduction in false negatives and improved overall product quality.

Case Study 2: Telehealth & Remote Diagnostics Platform

A medical device company developed a portable telehealth diagnostic kit for remote patient consultations. The kit required a high-resolution camera for visual examinations (e.g., skin, throat, eyes) and an integrated microphone for clear communication between patient and doctor. The compact size and the combined audio-video capabilities of the MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone were ideal. The 4K resolution allowed doctors to observe fine details critical for accurate remote diagnosis, while the driver-free nature simplified the end-user experience across various patient devices (laptops, tablets). This integration enhanced diagnostic accuracy, expanded access to care in remote areas, and improved the overall patient-physician interaction quality.

Case Study 3: Smart City Surveillance Kiosk

A smart city infrastructure provider sought a robust, multi-functional camera module for public safety kiosks. These kiosks needed to capture high-definition video for monitoring and recording, as well as enable two-way audio communication for emergency services. The MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone was selected for its dual capabilities. The 4K video provided superior clarity for incident reconstruction and facial recognition by local authorities, while the integrated analog microphone ensured reliable audio capture for emergency calls. Its broad operating temperature range and robust construction supported continuous operation in outdoor urban environments. The UVC compliance simplified integration with the kiosk's embedded computing platform, allowing for rapid deployment across multiple urban sites.

Frequently Asked Questions (FAQ)

Conclusion

The MY-USB8M628C 4K Resolution HD Video Driver-Free USB Camera Module With Analog Microphone represents a significant advancement in embedded vision technology. By combining high-resolution 4K video, seamless driver-free USB connectivity, and integrated audio capabilities within a compact and robust module, it addresses the evolving demands of industrial, medical, retail, and security applications. Its technical advantages, coupled with extensive customization options and dedicated customer support, make it an ideal choice for B2B decision-makers and engineers seeking reliable, high-performance imaging solutions. Investing in this module ensures not only superior visual data capture but also streamlined integration and long-term operational stability for critical systems.
