Oct . 09, 2025 11:54 Back to list

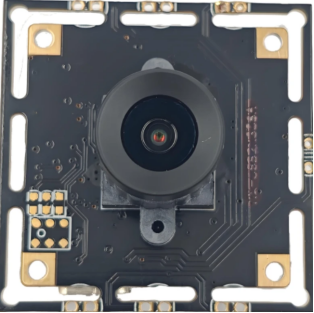

At Shenzhen Minyou Digital Technology Co.,Ltd, we’ve always focused on creating imaging solutions that balance clarity, convenience, and integration—especially for users needing reliable 5MP HD video recording. We understand that in fields like video conferencing, industrial inspection, and content creation, a camera module shouldn’t just capture footage; it should simplify workflows and deliver consistent quality. This vision drives every usb camera module solution we develop. We don’t just manufacture components—we craft tools that empower users to capture crisp, professional-grade video with minimal effort.

|
Items |
Parameters |
|||
|
Name |
USB Camera |
|||
|
Camera VID/PID |
VID:0A46 PID:6360 |
|||
|
SENSOR |
CMOS |
|||
|
Lens Size |
1/2.5" |
|||
|
Most effective pixels |
2592*1944 |
|||
|
dynamic range |
85dB |
|||
|
Lens |
Diagonal perspectiveFOV(D) :102±3° |
|||
|
Horizontal view angleFOV(H) :87±3° |
||||
|
Vertical viewing angleFOV(V) :69±3° |
||||
|
focusing |
Fixed focus |
|||
|
Data Format |
MJPG |
YUV |
||
|
Common resolution @ frame rate |
2592*1944@30fps |
2592*1520@30fps |
2592*1944@30fps |
1920*1080@60fps |
|
2048*1536@30fps |
1920*1080@60fps |
1600*1200@60fps |
1280*720@120fps |
|
|
1600*1200@60fps |
1280*720@120fps |
800*600@120fps |
640*480@120fps |
|
|
800*600@120fps |
640*480@120fps |
|
|
|
|
320*240@120fps |
|
|
|
|
|
auto control |
Saturation,White balance,exposure. |
|||
|
audio |
/ |
|||
|
Voltage |
USB 5V |
|||
|
working current |
MAX 200mA |
|||
|
USB Connector |
USB3.0--Type-C |
|||
|
Storage Temperature |
-20℃ to +70℃ |
|||
|
working Temperature |
0℃ to +50℃ |
|||
|
system compatibility |
1、Windows XP(SP2,SP3)、Vista 、7、8、10、11 |
|||
|
2、Mac OS with UVC driver |
||||
|
3、Linux or OS with UVC driver |
||||
Yes, our usb camera module is fully compatible with both Windows and Linux operating systems. It supports standard UVC (USB Video Class) drivers, which are pre-installed on most Windows versions and easily downloadable for Linux. This plug-and-play compatibility means you can connect the module to either system without installing specialized software, making it versatile for different user setups.
Absolutely, our usb camera mic features adjustable sensitivity settings to capture audio from different distances. Whether you need to record audio from a close-up (like a speaker in a video call) or a slightly farther source (like a product demonstration), you can tweak the sensitivity via compatible software. This flexibility ensures clear audio in various recording scenarios.
Yes, our usb camera and microphone combo supports live streaming of 5MP HD video. Its USB 3.0 interface provides fast enough data transfer to stream 5MP HD footage in real time, and the synced audio ensures no lag between video and sound. It works with common streaming software, making it ideal for live events, product launches, or remote broadcasts.
Our usb camera module minimizes motion blur through advanced image processing. It uses fast shutter speeds (adjustable via software) to freeze motion, and its 5MP sensor captures enough detail to maintain clarity even when recording moving objects. This makes it suitable for applications like recording assembly lines or live demos where motion is common.
Yes, our usb camera and microphone is designed for 24/7 continuous recording. It has a low-power design that prevents overheating during extended use, and its durable components withstand constant operation. We recommend pairing it with a reliable power source and storage solution, and the combo will deliver consistent 5MP HD video and audio without interruptions.
