Product Description

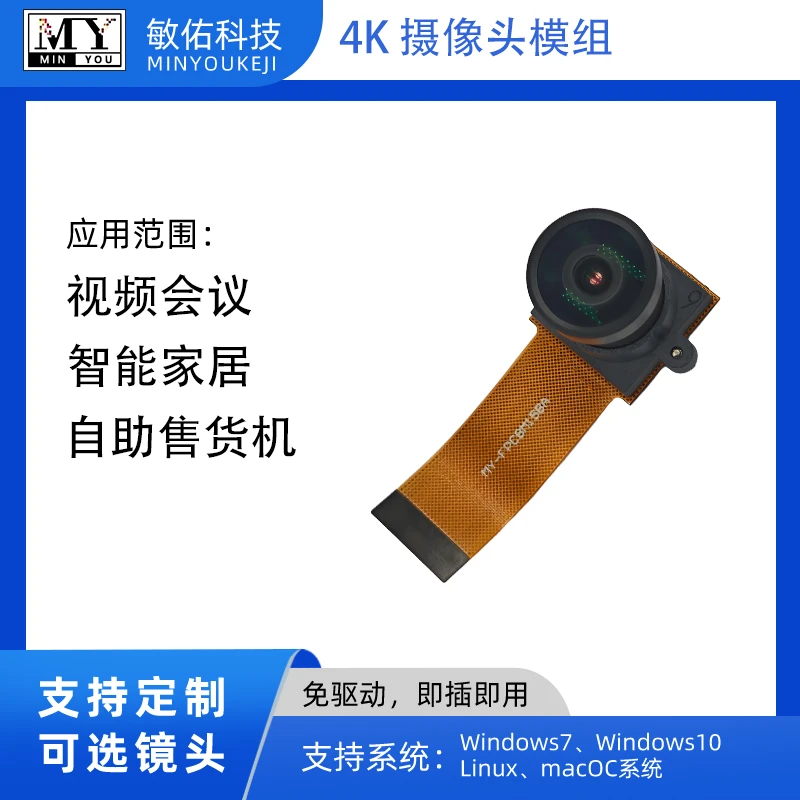

This module is using advanced image sensor technology with high-quality dynamic effects, it can adapt to a variety of harsh environments and reduce the adverse effects of complex light environments on recognition algorithms. It supports standard MIPI interfaces and can output high-quality video streams with a maximum resolution of 3840(H) x 2160(V) (16:9), a sensor pixel size of 1.45um x 1.45um, and an image transmission rate up to 3840x2160/60fps.

In addition, the IMX415 module is also with wide-angle, field of view is: D:120.3 degrees, H:111 degrees, V:76.4 degrees, and distortion is controlled within a certain range, this makes it can be widely used in the scenarios such as face recognition access control, attendance, gate machines, and ID machines.

Features and General Specifications

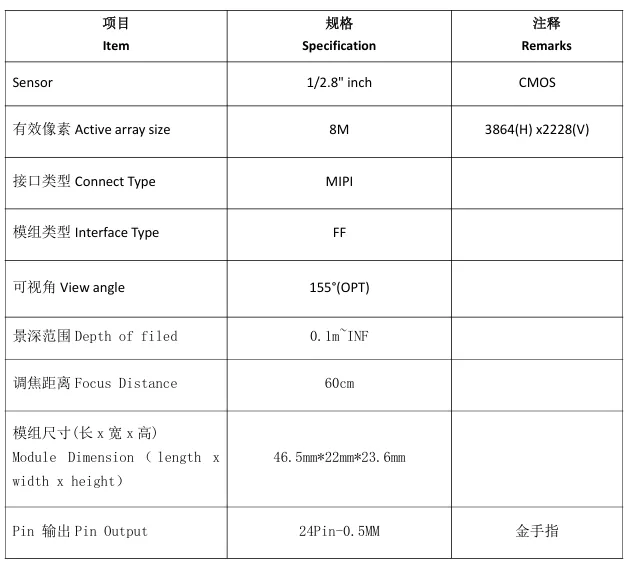

Camera Basic Specification

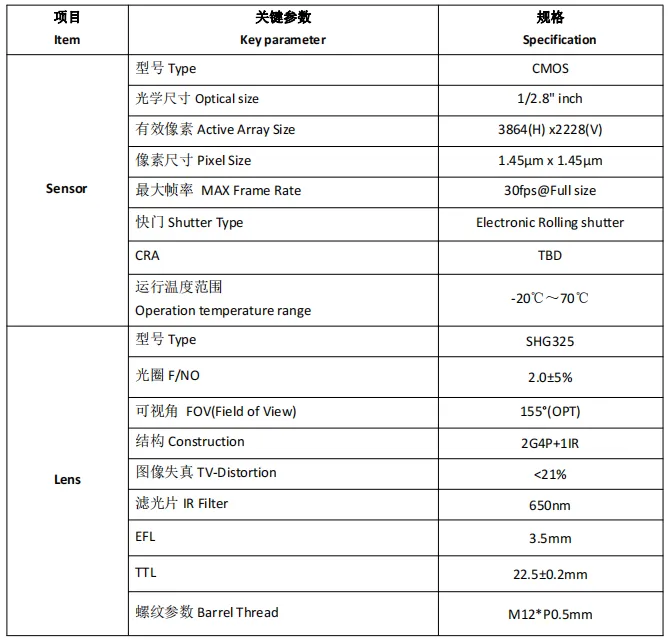

Key Component Specification

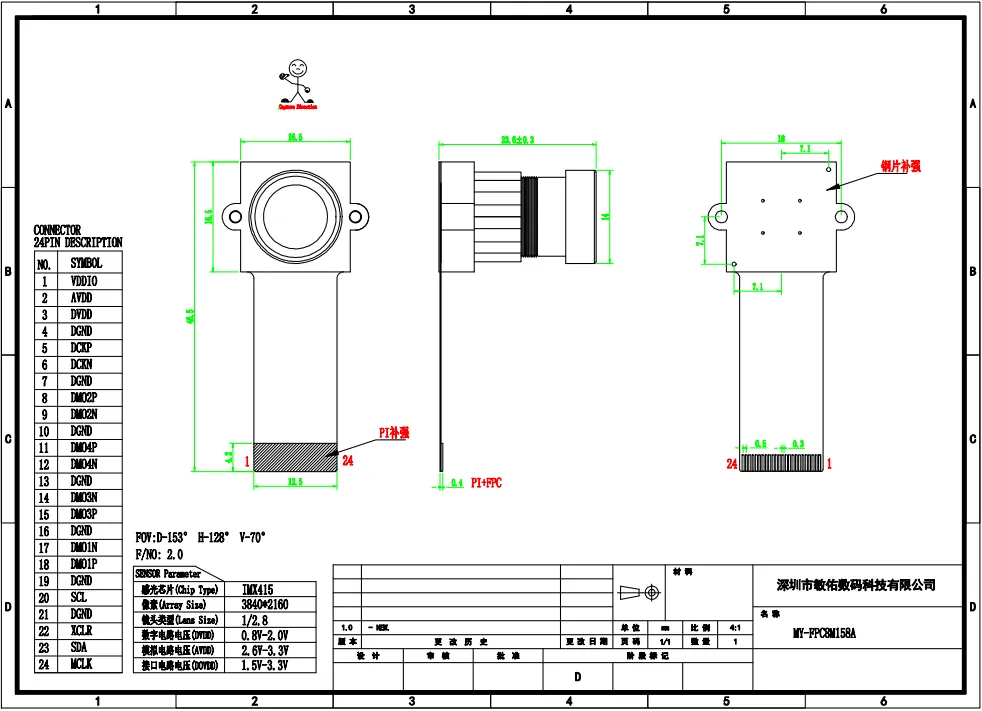

Product Structure Diagram
