MY-DC538A Dual Lens 1080P 30fps USB Camera Module: Stereo Vision

Evolving Landscape of Dual-Lens Camera Modules in Industrial Applications

The industrial sector is undergoing a profound transformation driven by advancements in artificial intelligence (AI), the Internet of Things (IoT), and automation. Central to this evolution is the increasing demand for sophisticated vision systems capable of providing nuanced environmental data. Dual-lens camera modules have emerged as a critical component, offering superior depth perception, stereoscopic vision, and enhanced situational awareness compared to traditional single-lens solutions. This technological shift is particularly evident in applications requiring precise object recognition, volumetric measurement, obstacle avoidance, and complex scene analysis.

Current industry trends highlight a significant push towards compact, high-resolution, and power-efficient imaging solutions that can be seamlessly integrated into diverse industrial frameworks. The ability to capture synchronized images from two distinct viewpoints enables advanced computational photography techniques, including 3D reconstruction, augmented reality overlays for maintenance, and improved performance in challenging lighting conditions. The global market for industrial vision systems is projected to grow substantially, with dual-lens modules playing a pivotal role in enabling next-generation robotic systems, autonomous guided vehicles (AGVs), smart manufacturing lines, and advanced medical diagnostics. Factors such as miniaturization, robust construction, and standardized interfaces like USB are accelerating their adoption across various vertical markets, demanding solutions that balance high performance with ease of integration.

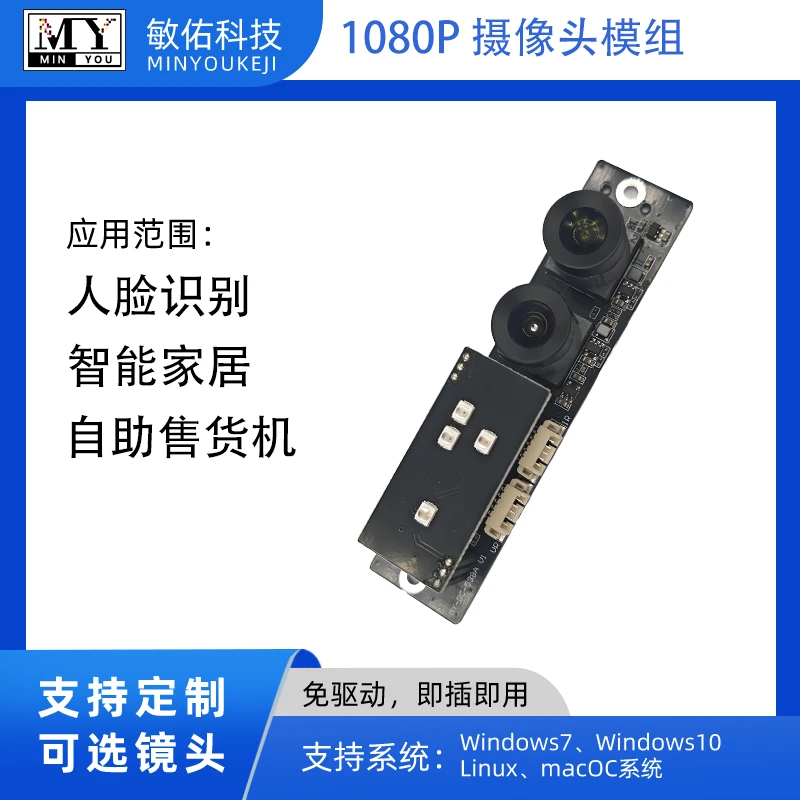

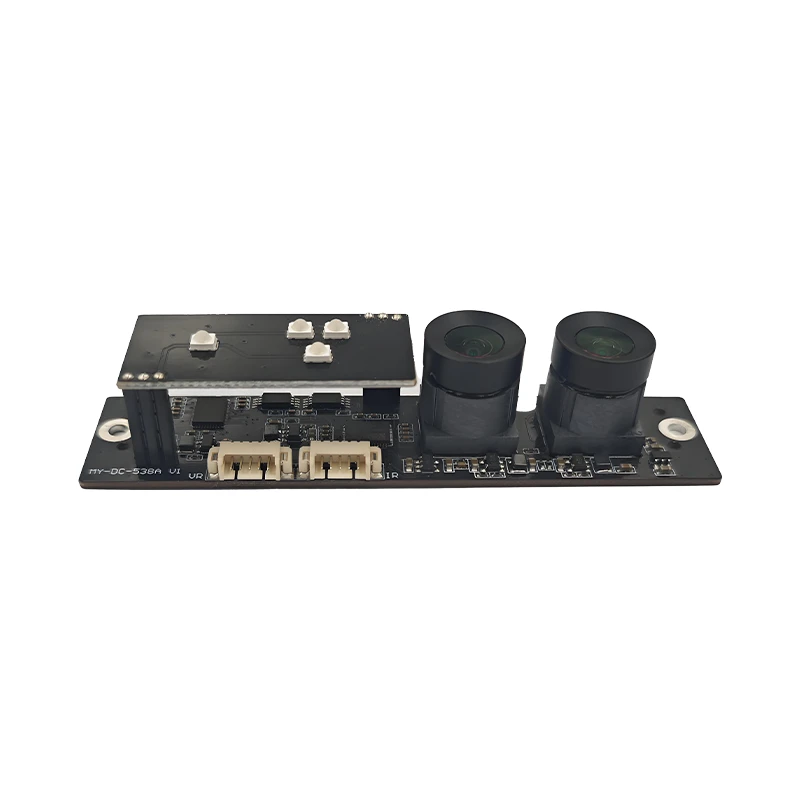

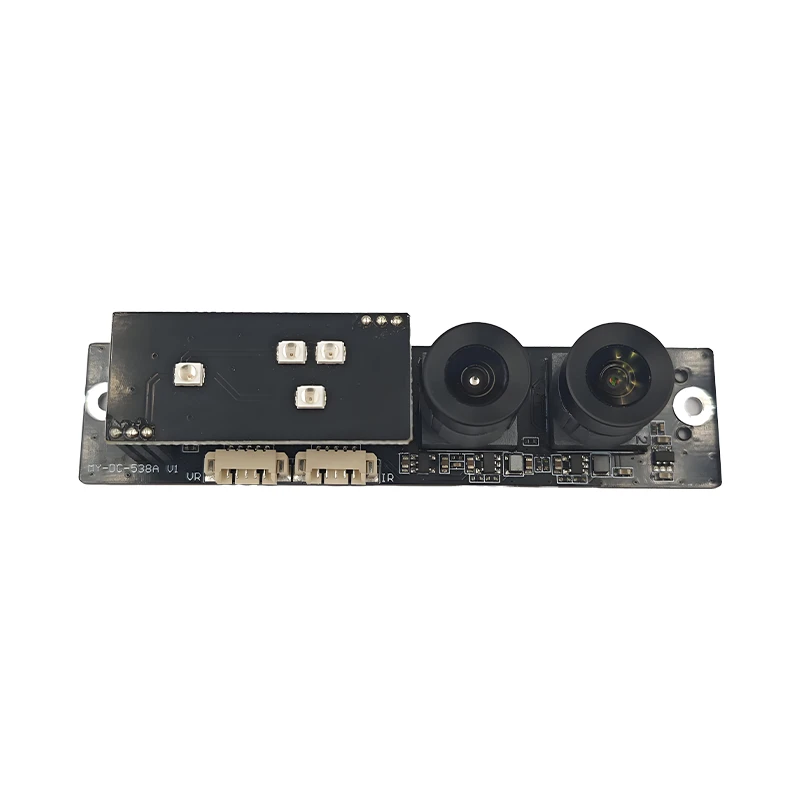

Introducing the MY-DC538A Dual Lens 1080P 30fps USB Camera Module

Addressing the stringent requirements of modern industrial applications, the MY-DC538A Dual Lens 1080P 30fps USB Camera Module stands out as a high-performance, compact, and versatile imaging solution. Engineered for precision and reliability, this module integrates two synchronized 1080P sensors, delivering real-time stereoscopic video at 30 frames per second via a universal USB interface. Its design prioritizes robust performance in demanding operational environments, making it an ideal choice for a spectrum of B2B applications where spatial awareness and reliable depth data are paramount.

The MY-DC538A is distinguished by its seamless plug-and-play functionality, minimizing integration complexity and accelerating deployment timelines for system integrators and OEMs. Its dual-lens configuration not only facilitates passive depth perception but also enhances object detection and tracking capabilities, crucial for automated processes and safety systems. Built with industrial-grade components, the module ensures longevity and consistent performance, adhering to rigorous quality standards required for continuous operation. This commitment to quality, combined with advanced imaging capabilities, positions the MY-DC538A Dual Lens 1080P 30fps USB Camera Module as a leading choice for sophisticated vision requirements.

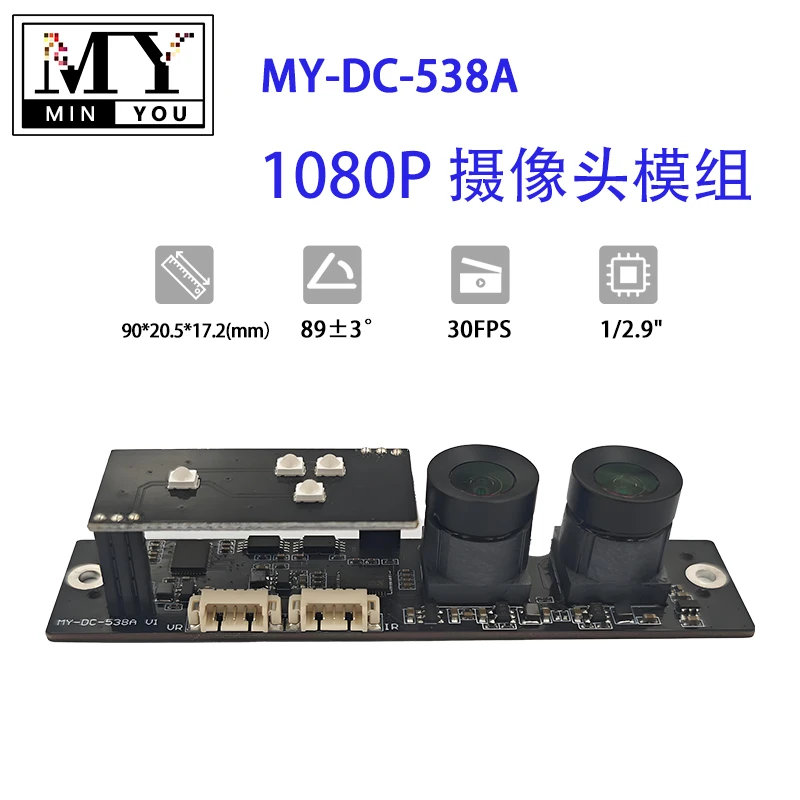

Technical Specifications of the MY-DC538A Module

Understanding the precise technical parameters is crucial for successful integration and optimal performance. The MY-DC538A Dual Lens 1080P 30fps USB Camera Module is engineered with a focus on delivering high-fidelity imaging and robust connectivity. The following table details the core specifications, providing a comprehensive overview for system architects and engineers.

This module's UVC compliance ensures broad compatibility with various operating systems without requiring custom driver installations, simplifying integration into existing hardware and software platforms. The wide operating temperature range also makes it suitable for deployment in challenging industrial environments, from chilled warehouses to high-temperature machinery enclosures.

Detailed Manufacturing Process of MY-DC538A

The manufacturing of the MY-DC538A Dual Lens 1080P 30fps USB Camera Module adheres to a rigorous, multi-stage process designed to ensure exceptional quality, reliability, and performance. This process integrates advanced fabrication techniques with stringent quality control, reflecting our commitment to industrial-grade standards.

1. Component Sourcing and Material Preparation

• Image Sensors: High-performance CMOS sensors (e.g., OV2710 or equivalent) are sourced from reputable, certified suppliers. These silicon-based components are fundamental to image capture.
• Optical Lenses: Precision-ground glass and polymer lenses, chosen for their low distortion and optimal light transmission properties, are procured. Materials like optical-grade polymers and specialized glass are used to ensure clarity and durability.
• Printed Circuit Boards (PCBs): High-density interconnect (HDI) PCBs, typically made from FR4 epoxy laminate, are fabricated. These boards are designed for minimal signal interference and robust mechanical integrity.
• USB Controllers & Ancillary Components: Integrated circuits (ICs) for USB communication, power management units, and passive components (resistors, capacitors) are selected for industrial temperature ranges and long service life.

2. PCB Assembly (PCBA)

• Solder Paste Application: A precise layer of lead-free solder paste is applied to the PCB pads using stencil printing.
• Surface Mount Technology (SMT): Automated pick-and-place machines precisely position the image sensors, USB controllers, and other surface-mount devices onto the PCB.
• Reflow Soldering: The assembled PCBs pass through a reflow oven, where controlled heating melts the solder paste, creating secure electrical and mechanical connections.
• Automated Optical Inspection (AOI): Post-reflow, each PCBA undergoes AOI to detect any soldering defects, missing components, or incorrect orientations, ensuring high assembly quality.

3. Lens Integration and Optical Alignment

• Module Assembly: The optical lens barrels are carefully mounted onto the sensor sites on the PCBA.
• Active Optical Alignment: In a cleanroom environment (e.g., Class 1000 or Class 100), specialized equipment is used to actively focus and align each lens. Real-time image analysis ensures optimal focus, minimal distortion, and precise parallax for stereoscopic applications. This critical step guarantees the synchronization and accuracy required for depth perception algorithms.
• Curing: Once aligned, the lenses are permanently fixed using UV-curable epoxy, ensuring mechanical stability and resistance to vibration and temperature fluctuations.

4. Firmware Loading and Initial Functionality Testing

• Firmware Programming: The embedded firmware for the USB controller and Image Signal Processor (ISP) is loaded onto the module. This firmware controls image acquisition parameters, data formatting, and USB communication protocols.
• Basic Functionality Test: Each module undergoes initial power-on and video stream verification. This includes checking for correct resolution, frame rate, and basic image quality.

5. Calibration and Advanced Performance Testing

• Stereoscopic Calibration: A sophisticated calibration process is performed to determine the intrinsic and extrinsic parameters of both cameras (focal length, principal point, lens distortion, relative pose). This data is often stored on the module or provided as a calibration file, essential for accurate 3D reconstruction.
• Image Quality Assessment: Comprehensive tests are conducted for parameters such as resolution, color accuracy, signal-to-noise ratio (SNR), dynamic range, and fixed pattern noise (FPN) under various lighting conditions.
• Environmental Testing: Sample modules undergo thermal cycling, vibration testing, and humidity testing to ensure long-term reliability in target industries such as petrochemical (resistance to temperature swings), metallurgy (vibration tolerance), and water supply & drainage (humidity and corrosion resistance). These tests adhere to standards like IEC 60068.
• EMC/EMI Compliance: Modules are tested for electromagnetic compatibility and interference, crucial for deployment in environments with sensitive electronic equipment, ensuring compliance with standards such as FCC Part 15 and CE.

6. Final Inspection and Packaging

• Visual Inspection: A final visual check for any cosmetic defects or physical damage.
• Functional Verification: A final quick functional test before packaging.
• Packaging: Modules are carefully packaged in anti-static materials to prevent electrostatic discharge (ESD) damage during transit, ensuring product integrity upon arrival.

The expected service life of the MY-DC538A Dual Lens 1080P 30fps USB Camera Module is typically 5-7 years in continuous operation under specified environmental conditions, thanks to the selection of robust components and meticulous manufacturing. Advantages in typical application scenarios include enhanced energy saving through efficient power management and superior corrosion resistance due to carefully selected materials and protective coatings on critical components, extending operational lifespan in harsh industrial settings.

Technical Advantages of the MY-DC538A Module

The MY-DC538A Dual Lens 1080P 30fps USB Camera Module offers a compelling suite of technical advantages that set it apart in the competitive landscape of industrial imaging:

• Precise Stereoscopic Vision: Unlike monocular cameras, the dual-lens configuration provides essential parallax information, enabling highly accurate depth perception and 3D reconstruction. This is critical for applications like robotic grasping, volumetric measurement, and collision avoidance, where understanding object proximity and shape in three dimensions is paramount.
• Synchronized Dual Stream Output: Both 1080P streams are precisely synchronized, minimizing motion artifacts and ensuring that depth maps or 3D point clouds are generated from concurrent views. This synchronization is achieved at the hardware level, providing reliable input for real-time processing algorithms.
• High Definition and Frame Rate: Delivering 1080P resolution at 30fps from each lens ensures crisp, detailed imagery and smooth video capture. This combination is ideal for capturing fast-moving objects or for applications requiring fine-grained visual inspection.
• Universal USB 2.0 Interface: The UVC-compliant USB 2.0 interface offers broad compatibility with various host systems (Windows, Linux, Android, macOS) without the need for proprietary drivers. This simplifies integration, reduces development time, and provides flexible connectivity options.
• Compact and Robust Design: Engineered for industrial environments, the module boasts a compact form factor that allows for integration into space-constrained devices. Its robust construction ensures reliable operation under varying temperatures and conditions, contributing to a lower total cost of ownership (TCO).
• Low Light Performance and Dynamic Range: Equipped with advanced CMOS sensors and optimized ISP (Image Signal Processor) firmware, the module exhibits excellent performance in low-light conditions and offers a respectable dynamic range, ensuring clarity even in scenes with high contrast variations.
• Customization Potential: Beyond its standard configuration, the module allows for extensive customization, including lens options (FOV, focal length), PCB form factor adjustments, and specific firmware tuning, making it adaptable to unique project requirements.

Application Scenarios

The versatility and technical prowess of the MY-DC538A Dual Lens 1080P 30fps USB Camera Module make it suitable for a broad spectrum of high-demand industrial and commercial applications:

• Industrial Automation and Robotics: Essential for robotic arm navigation, pick-and-place operations, quality control inspection on assembly lines, and collaborative robot (cobot) safety systems requiring accurate depth sensing and object manipulation.
• Autonomous Mobile Robots (AMRs) and AGVs: Provides critical 3D environmental mapping, obstacle detection, and navigation capabilities for robots operating in warehouses, factories, and logistics centers.
• Smart Retail and Customer Analytics: Enables advanced people counting, queue management, dwell time analysis, and gesture recognition for enhanced customer experience and operational efficiency in retail environments.
• Security and Surveillance: Augments traditional surveillance with 3D scene understanding, improving intruder detection, facial recognition accuracy, and preventing false alarms by differentiating between objects and shadows.
• Medical Imaging and Diagnostics: Used in specialized medical devices requiring 3D visualization, such as endoscopic cameras for surgical navigation, dental imaging, or laboratory automation for sample analysis.
• Virtual Reality (VR) / Augmented Reality (AR) Systems: Provides real-world input for AR/VR headsets, enabling accurate pass-through video, spatial tracking, and realistic overlay of digital content onto physical environments.
• Logistics and Inventory Management: Facilitates automated package dimensioning, palletizing optimization, and precise inventory tracking through volumetric scanning.

Vendor Comparison: MY-DC538A vs. Market Alternatives

When selecting a dual-lens camera module, decision-makers evaluate various factors beyond raw specifications, including long-term support, customization flexibility, and overall value. The MY-DC538A Dual Lens 1080P 30fps USB Camera Module distinguishes itself by offering a robust feature set combined with exceptional integration support.

This comparison highlights the strategic positioning of the MY-DC538A. While other modules may offer similar headline specifications, the MY-DC538A's robust industrial design, combined with its ease of integration via a UVC-compliant USB interface and extensive customization options, often results in a superior solution for B2B integrators. The focus on hardware synchronization for stereoscopic vision ensures data integrity, which is a significant advantage over software-dependent alternatives. For clients prioritizing reliability, flexible customization, and straightforward deployment, the MY-DC538A Dual Lens 1080P 30fps USB Camera Module offers a compelling value proposition.

Customized Solutions

Recognizing that off-the-shelf solutions may not always perfectly align with unique project requirements, we offer comprehensive customization services for the MY-DC538A Dual Lens 1080P 30fps USB Camera Module. Our engineering team collaborates closely with clients to tailor the module to specific application demands, ensuring optimal performance and seamless integration.

• Lens Options: Customization includes variations in Field of View (FOV) from narrow-angle telephoto to ultra-wide-angle fisheye lenses, different focal lengths, and specialized optical coatings for specific wavelengths (e.g., IR cut filters or broadband anti-reflection coatings).
• PCB Form Factor: The physical dimensions and layout of the PCB can be adapted to fit existing enclosures or space constraints within a client's device, including modifications to mounting points and connector types.
• Housing and Enclosure Design: Development of custom protective housings, ranging from ruggedized industrial-grade enclosures for harsh environments to compact, aesthetically integrated designs for consumer-facing products.
• Image Signal Processor (ISP) Tuning: Fine-tuning of ISP parameters for specific lighting conditions, color reproduction accuracy, white balance, and noise reduction, optimizing image quality for the intended application.
• Software Development Kit (SDK) / API: Provision of tailored SDKs or APIs to facilitate easier integration with client software, often including example code for common tasks like image acquisition, stereoscopic calibration data access, and image processing.
• Interface Modifications: While primarily USB, specific projects might require minor interface adjustments or additional communication lines depending on the host system.

Our experienced team leverages years of expertise in camera module design and manufacturing to deliver bespoke solutions that meet precise technical and commercial objectives, from initial concept to mass production.

Application Case Studies

The deployment of the MY-DC538A Dual Lens 1080P 30fps USB Camera Module has consistently delivered measurable improvements across various industrial contexts. Here are a few illustrative case studies:

Case Study 1: Automated Quality Control in Electronics Manufacturing

• Challenge: A leading electronics manufacturer needed to automate the inspection of complex PCB assemblies for component placement accuracy and solder joint integrity. Traditional 2D vision systems struggled with parallax issues and accurate height measurement of components, leading to manual verification bottlenecks.
• Solution: They integrated the MY-DC538A module into their robotic inspection arm. The module’s dual 1080P synchronized streams provided precise stereoscopic data, enabling robust 3D reconstruction of the PCB. This allowed for accurate measurement of component heights, identification of lifted leads, and verification of solder fillet volumes.
• Outcome: The manufacturer achieved a 40% reduction in inspection time per board and a 99.5% accuracy rate in defect detection, significantly reducing rework and improving overall product quality. The USB interface also simplified integration with their existing industrial PC-based control system.

Case Study 2: Precision Navigation for Autonomous Mobile Robots (AMRs)

• Challenge: An AMR developer sought to enhance the navigation and obstacle avoidance capabilities of their warehouse robots, particularly in dynamic environments with constantly changing layouts and human traffic. Existing 2D cameras and LiDAR solutions lacked sufficient detail for close-range object identification and accurate depth mapping, leading to slower movement and occasional collisions.
• Solution: Multiple MY-DC538A modules were strategically mounted on the AMRs. The modules provided high-resolution, real-time stereoscopic vision, enabling the robots to generate dense 3D point clouds of their surroundings. This allowed for more precise localization, dynamic obstacle avoidance, and even recognition of smaller objects on the floor.
• Outcome: The AMRs demonstrated a 25% increase in operational speed and a near-elimination of minor collisions. The robust design of the module ensured consistent performance even with the constant vibrations inherent in mobile robot operation, contributing to a longer operational lifespan for the robot fleet.

Trustworthiness & Support

Our commitment to client success extends beyond product delivery. We emphasize transparency, reliability, and robust after-sales support, foundational elements for long-term B2B partnerships.

Frequently Asked Questions (FAQ)

• Q: Is the MY-DC538A compatible with Linux/Android?
  A: Yes, the module is UVC (USB Video Class) compliant, ensuring plug-and-play compatibility with most operating systems, including Windows, Linux, Android, and macOS, without the need for specific drivers.
• Q: Can the lenses be changed or customized?
  A: Absolutely. We offer extensive customization options, including different Field of View (FOV) lenses, focal lengths, and even specialized optics to meet unique application requirements. Please contact our sales team for detailed customization discussions.
• Q: What is the power consumption of the module?
  A: The MY-DC538A Dual Lens 1080P 30fps USB Camera Module typically consumes less than 200mA at 5V, making it highly power-efficient for integrated systems, drawing power directly from the USB port.
• Q: How is synchronization handled between the two lenses?
  A: The module features hardware-level synchronization, ensuring that both 1080P video streams are captured simultaneously. This precision is crucial for accurate stereoscopic vision and depth mapping algorithms.

Lead Time and Fulfillment

Standard orders for the MY-DC538A module typically have a lead time of 2-4 weeks, depending on order volume and current stock levels. For customized solutions, lead times will be provided after detailed project scope and design approval, generally ranging from 6-12 weeks for prototyping and initial production runs. We maintain efficient supply chain management to ensure timely delivery and reliable fulfillment.

Warranty Commitments

We stand behind the quality of our products. The MY-DC538A Dual Lens 1080P 30fps USB Camera Module comes with a standard 12-month limited warranty covering manufacturing defects and material failures from the date of purchase. Extended warranty options and service contracts are available for large-volume deployments or specialized applications, providing peace of mind for critical systems.

Customer Support

Our dedicated technical support team is available to assist with integration challenges, troubleshooting, and general inquiries. We provide comprehensive documentation, including datasheets, integration guides, and SDK user manuals. Support can be accessed via email, phone, or a dedicated online portal, ensuring prompt and expert assistance for our B2B partners globally.

Conclusion

The MY-DC538A Dual Lens 1080P 30fps USB Camera Module represents a cutting-edge solution for industrial and commercial applications demanding high-performance stereoscopic vision. Its blend of technical precision, ease of integration, and robust build quality positions it as an invaluable component for advanced automation, robotics, and 3D sensing systems. With comprehensive support and extensive customization options, the MY-DC538A is designed not just to meet, but to exceed the evolving demands of modern B2B vision requirements, empowering integrators and OEMs to develop innovative and reliable products.
