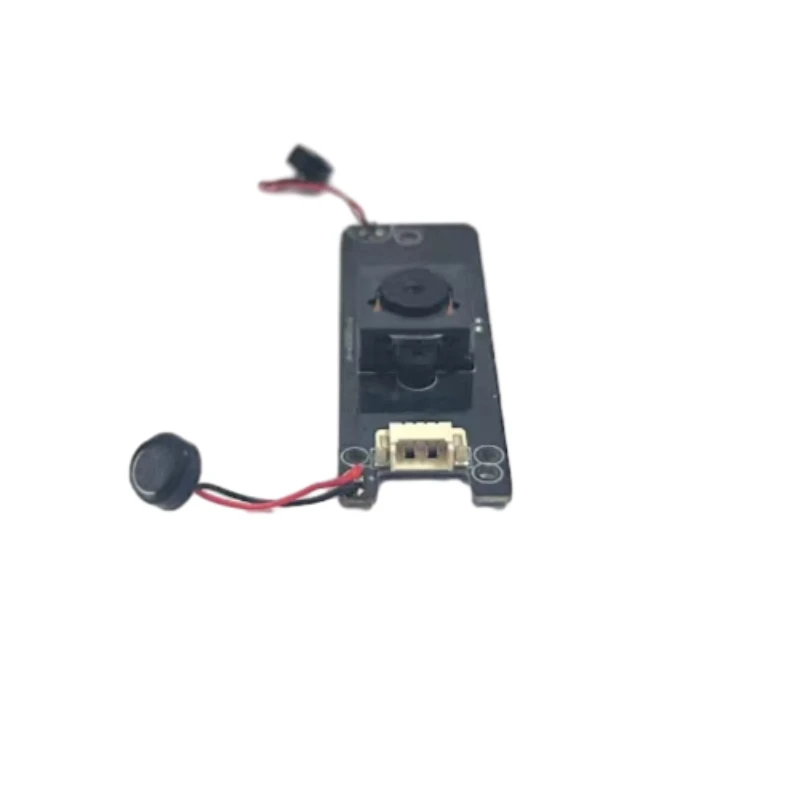

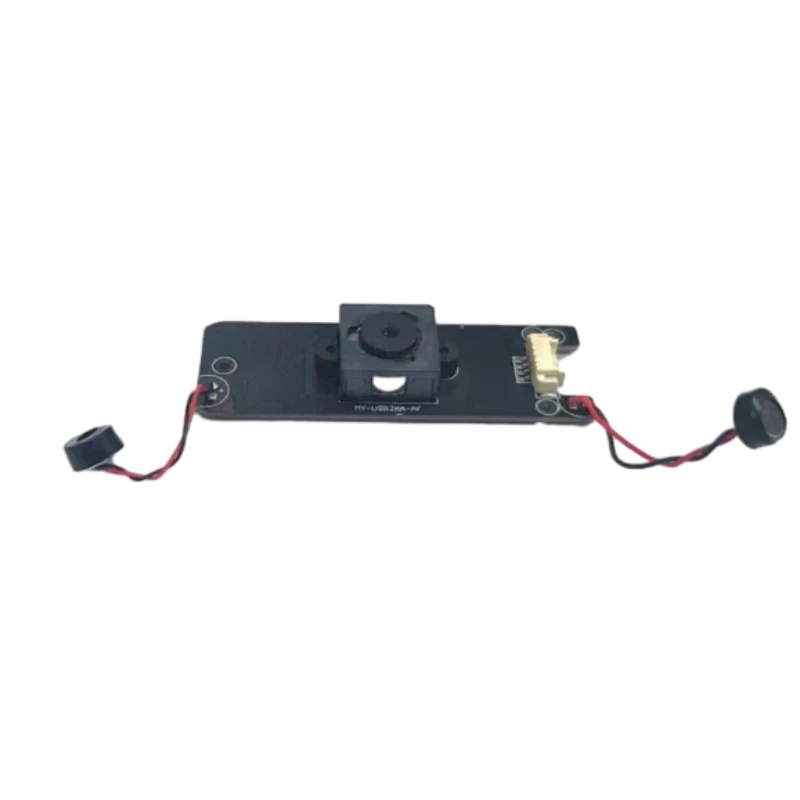

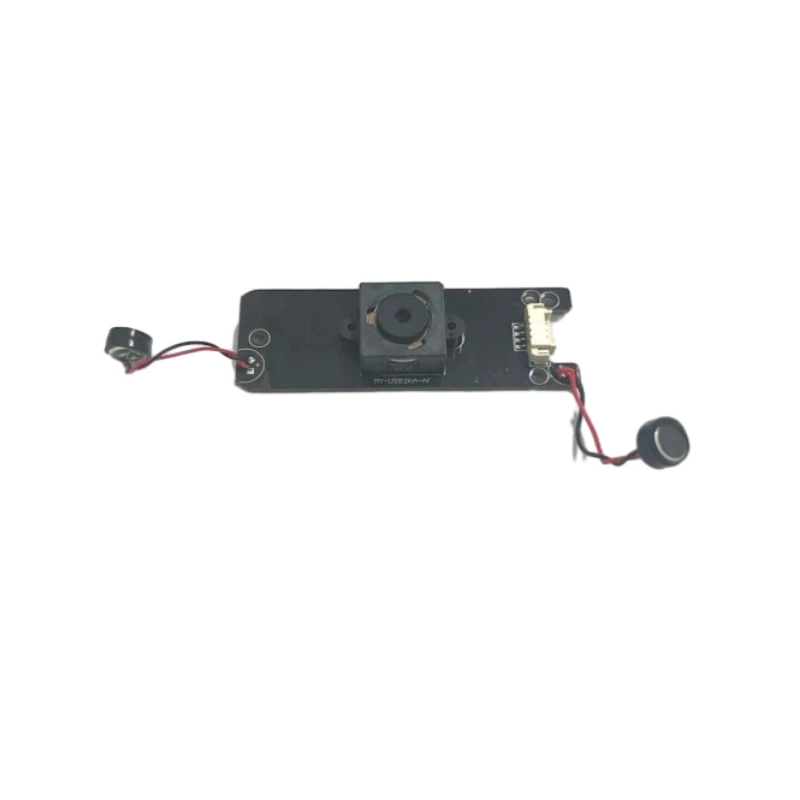

MY-USB2KA-AF USB Camera Module - Shenzhen Minyou&039;s High-Res Solution

The MY-USB2KA-AF is a high-performance USB camera module designed for precision imaging applications. Developed by Shenzhen Minyou Digital Technology Co., Ltd., this device combines advanced sensor technology with robust compatibility to deliver exceptional image quality and versatility. Below, we explore its features, technical specifications, and real-world applications.

Key Features of the MY-USB2KA-AF

The MY-USB2KA-AF stands out due to its advanced imaging capabilities and user-friendly design. Key features include:

• High-Resolution Imaging: Captures images at up to 2560x1440 pixels, ensuring clarity and detail for critical applications.
• CMOS Sensor Technology: Utilizes a 1/3-inch CMOS sensor for efficient light capture and low noise performance.
• Wide Dynamic Range: Offers an 81dB dynamic range to maintain detail in both bright and dark areas of a scene.
• Auto-Focus Functionality: Enhances usability by automatically adjusting focus for optimal image sharpness.
• USB 2.0 Compatibility: Ensures seamless integration with a wide range of devices and operating systems.

Technical Specifications

Parameter	Specification
Device Name	MY-USB2KA-AF
VID/PID	0C45 / 0455
Sensor Type	CMOS
Optical Format Size	1/3 inch
Max Effective Pixels	2560 x 1440
Pixel Size	2.0 µm x 2.0 µm
Signal-to-Noise Ratio (SNR)	38 dB
Dynamic Range	81 dB
Field of View (FOV)	71.2° ±5° (D)
Aperture (F/NO)	2.0
Lens Construction	4P + 1IR
TV Distortion
IR Filter	650 nm
Focus Type	Auto-Focus
Data Format	MJPG / YUV
Common Resolutions @ Frame Rate	2560x1440@30fps / 2560x1440@3fps
Auto Control Features	Saturation, Contrast, White Balance, Exposure
Voltage	USB 5V - 500mA
Working Current	Max 150mA
USB Connector	USB 2.0
Storage Temperature	-20°C to +70°C
Operating Temperature	0°C to +50°C
System Compatibility	Windows XP (SP2/SP3), Vista, 7, 8, 10; Linux with UVC driver

Advantages of the MY-USB2KA-AF

The MY-USB2KA-AF offers several advantages that make it a preferred choice for developers and engineers:

• Superior Image Quality: The high-resolution sensor and wide dynamic range ensure accurate and detailed imaging, even in challenging lighting conditions.
• Robust Compatibility: With support for multiple operating systems, including Windows and Linux, the module is adaptable to diverse environments.
• Energy Efficiency: The low power consumption (max 150mA) makes it suitable for battery-powered or portable applications.
• Durability: Designed to operate in a wide temperature range, the module is ideal for industrial and outdoor applications.
• Easy Integration: USB 2.0 connectivity simplifies setup and reduces the need for additional hardware.

Applications of the MY-USB2KA-AF

The MY-USB2KA-AF is versatile and suitable for a variety of applications, including:

• Industrial Automation: Used in quality inspection systems, where precise imaging is critical for defect detection.
• Security Systems: Provides clear video feeds for surveillance in both indoor and outdoor settings.
• Medical Imaging: Ideal for endoscopic devices and diagnostic tools requiring high-resolution visuals.
• Consumer Electronics: Integrates into devices like smart home cameras and video conferencing systems.
• Research and Development: Supports prototyping and testing in fields such as robotics and computer vision.

About Shenzhen Minyou Digital Technology Co., Ltd.

Shenzhen Minyou Digital Technology Co., Ltd. is a leading manufacturer of digital imaging solutions, specializing in USB camera modules and related technologies. With a focus on innovation and quality, the company has established itself as a trusted partner for businesses and developers worldwide. Their commitment to research and development ensures that products like the MY-USB2KA-AF meet the highest standards of performance and reliability.

Authoritative Citations

According to the National Institute of Standards and Technology (NIST), USB interfaces must adhere to strict specifications to ensure interoperability and performance. The MY-USB2KA-AF's compliance with USB 2.0 standards aligns with these guidelines, as noted in NIST Technical Report 11164 (2021). Additionally, NIST's research on CMOS sensor technology emphasizes the importance of dynamic range and pixel size in imaging accuracy, which are key features of the MY-USB2KA-AF (NIST Technical Report 11142, 2020).

Conclusion

The MY-USB2KA-AF is a high-performance USB camera module that combines advanced imaging technology with robust compatibility. Whether for industrial, medical, or consumer applications, this device offers the precision and reliability needed to meet modern demands. Backed by Shenzhen Minyou Digital Technology Co., Ltd.'s commitment to innovation, the MY-USB2KA-AF is a testament to the company's dedication to excellence in digital imaging solutions.
