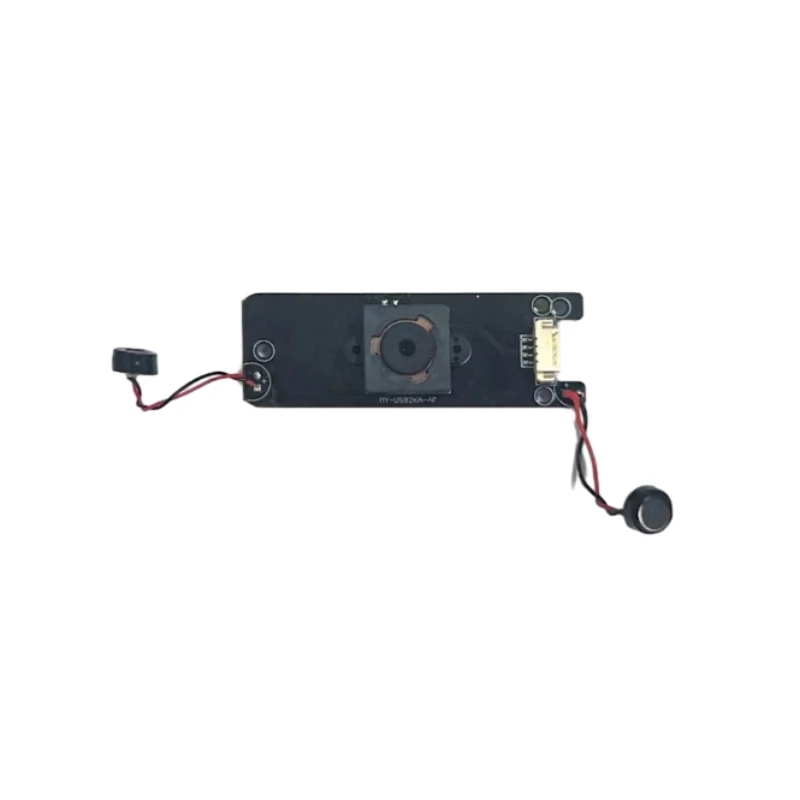

MY-USB2KA-AF USB Camera Module - Shenzhen Minyou Digital Technology Co., Ltd.

The MY-USB2KA-AF USB camera module from Shenzhen Minyou Digital Technology Co., Ltd. represents a cutting-edge solution for high-resolution imaging across multiple industries. Designed to deliver exceptional clarity, durability, and compatibility, this device is ideal for applications ranging from industrial automation to medical imaging. Below, we explore the product's features, technical specifications, and its role in modern technology ecosystems.

Product Overview

The MY-USB2KA-AF is a compact yet powerful USB camera module that combines advanced sensor technology with a robust design. Its high-resolution capabilities and wide compatibility make it a versatile tool for developers, engineers, and end-users. The module supports multiple operating systems, including Windows and Linux, ensuring seamless integration into diverse environments.

Key Features of the MY-USB2KA-AF

The MY-USB2KA-AF is engineered to meet the demands of high-performance imaging. Its core features include:

• High-Resolution Imaging: The module utilizes a CMOS sensor with a maximum effective resolution of 2560x1440 pixels, ensuring sharp and detailed images even in low-light conditions.
• Optical Precision: With an optical format size of 1/3", the camera offers a balanced field of view and image quality, making it suitable for both close-range and moderate-distance applications.
• Advanced Lens Technology: The 4P+1IR lens construction enhances light gathering and reduces distortion, while the 650nm IR filter ensures accurate color reproduction in varying lighting conditions.
• Autofocus Capability: The autofocus system adapts quickly to changing environments, maintaining clarity in dynamic scenarios.
• Wide Compatibility: The module supports Windows XP, Vista, 7, 8, 10, and Linux systems with UVC drivers, ensuring broad usability.

Technical Specifications

Item	Parameters
Device Name	MY-USB2KA-AF
VID/PID	0C45 0455
Sensor Type	CMOS
Optical Format Size	1/3"
Max Effective Pixels	2560x1440
Pixel Size	2.0μm x 2.0μm
SNR	38dB
Dynamic Range	81dB
FOV (Horizontal)	71.2° ±5°
F/NO	2.0
Lens Construction	4P+1IR
TV Distortion	< -3.7%
IR Filter	650nm
Focusing	Autofocus
Data Format	MJPG, YUV
Common Resolutions @ Frame Rate	2560x1440@30fps, 1920x1080@30fps, 1280x720@30fps
Auto Control	Saturation, Contrast, White Balance, Exposure
Voltage	USB 5V - 500mA
Working Current	MAX 150mA
USB Connector	USB2.0
Storage Temperature	-20°C to +70°C
Working Temperature	0°C to +50°C
System Compatibility	Windows XP (SP2, SP3), Vista, 7, 8, 10; Linux with UVC driver

Advantages of the MY-USB2KA-AF

The MY-USB2KA-AF offers several advantages that set it apart from competitors:

• High Image Quality: The combination of a high-resolution CMOS sensor and advanced lens design ensures exceptional image clarity and detail.
• Low Light Performance: With a 38dB SNR and 81dB dynamic range, the module excels in low-light environments, capturing clear images even in challenging conditions.
• Wide Compatibility: The support for multiple operating systems and USB 2.0 connectivity simplifies integration into existing systems.
• Durability: The module is designed to operate in a broad temperature range, making it suitable for both indoor and outdoor applications.
• Cost-Effective: Its compact design and efficient power consumption make it an economical choice for developers and manufacturers.

Application Scenarios

The MY-USB2KA-AF is tailored for a variety of applications, including:

• Industrial Automation: The module's high-resolution imaging and autofocus capabilities make it ideal for quality control, inspection, and robotic systems.
• Surveillance Systems: Its wide FOV and low-light performance enhance security applications, providing clear footage in both day and night conditions.
• Medical Imaging: The camera's precision and reliability support diagnostic tools and telemedicine solutions.
• Consumer Electronics: The module can be integrated into devices like smart home cameras, drones, and IoT systems.
• Research and Development: Its compatibility with Linux and UVC drivers makes it a valuable tool for developers and researchers.

About Shenzhen Minyou Digital Technology Co., Ltd.

Shenzhen Minyou Digital Technology Co., Ltd. is a leading manufacturer of digital imaging solutions, with a focus on innovation and quality. The company has been dedicated to developing advanced USB camera modules and related technologies for over a decade. Their commitment to research and development ensures that their products meet the evolving needs of the market.

With a strong emphasis on product reliability and customer satisfaction, Shenzhen Minyou Digital Technology Co., Ltd. has established itself as a trusted name in the industry. Their products are used in various sectors, including manufacturing, healthcare, and consumer electronics.

For more information about the MY-USB2KA-AF and other products, visit the product page or explore the company's official website.

Authoritative Citations

The technical specifications and performance metrics of the MY-USB2KA-AF are aligned with industry standards and research conducted by reputable institutions. For example, the National Institute of Standards and Technology (NIST) has published extensive research on imaging technologies, including sensor performance and optical systems. These standards provide a foundation for evaluating the capabilities of modern camera modules like the MY-USB2KA-AF.

According to NIST's guidelines on standards and measurements, the integration of high-resolution sensors and advanced lens systems is critical for achieving accurate and reliable imaging. The MY-USB2KA-AF exemplifies these principles, offering a balance of performance and practicality.

For further details on NIST's contributions to imaging technology, visit the NIST website.

Conclusion

The MY-USB2KA-AF USB camera module from Shenzhen Minyou Digital Technology Co., Ltd. is a robust and versatile solution for high-resolution imaging. Its advanced technical specifications, wide compatibility, and diverse applications make it a valuable asset for developers, engineers, and end-users. By adhering to industry standards and leveraging cutting-edge technology, the product demonstrates the company's commitment to innovation and quality.

Whether used in industrial automation, surveillance, or medical imaging, the MY-USB2KA-AF is designed to meet the demands of modern applications. For more information, visit the product page or contact Shenzhen Minyou Digital Technology Co., Ltd. directly.
